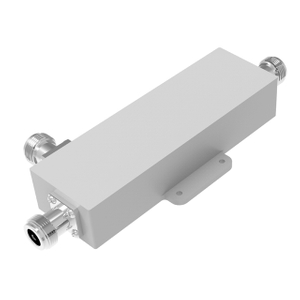

2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner 2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner
2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner 2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner
2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner 2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner

2 in 2 Out 4.3-10 Female 350-6000MHz Hybrid Coupler 380-6000 MHz Low PIM 3dB Hybrid Combiner

5 0 Reviews

Availability:
Quantity:
  • VN-HC2x2-3560-OP-xxx

  • Vinncom or OEM brand

350-6000MHz and 380-6000MHz 2:2 Hybrid couplers is designed for DAS or equipment integration ,it can be used as same band combiner or used to be signal divider , this 3dB hybrid combiner is designed with typical VSWR (1:1.20)and Flatness(less than 1.8dB) for system use and better specs can be designed .
Product Description

Features

1.VSWR can be 1:1.20 typically

2.Good flatness 1.3dB typically

3.Low PIM -160dBc~-165dBc

4.Wide band optional

380-6000MHz  and 350-6000MHz 3dB hybrid combiner is wideband design with air dielectricity used in 5G distributed antenna systems ,usually used as same band combiner to combine different carrier or different band to same band output to antenna

350-6000MHz 2in 2out 4.3-10 Female 3dB Hybrid Combiner

微信图片_20230306094824

VN-HC2x2-03560-OP-xxx.pdf

350-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler


Part Number

VN-HC2x2-03560-OP-xxx

Operating Frequency ( MHz )

350-6000

Impedance ( Ohm )

50

VSWR

1.35

Coupling (dB)

3

Insertion Loss (dB)

+/-2

Isolation (dB)

20

IM3 (dBc @ 2*43dBm)@xxx

-150/-160/-163/-165

Application

Indoor & Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

4.3-10 Female

Handling Power (Watt, max)

200

Peak Power (Watt, max)

1200

Dimension (mm)(L*W*H, excl connector)

176.5*46*42

Net Weight (g)

865

ROHS Compliance

Yes

Packing Dimensions (mm,L*W*H)

250*105*50

Packing Carton Size (mm,L*W*H)

565*260*120

Revision

R1

Date

26-Oct-2022
