VN-PS-3560-ON2-S-xxx VN-PS-3438-ON2-S-xxx
Vinncom or OEM brand
Features：
1.Reactive Power Splitter Design
2.High Power handling 300watts
3.Low PIM Optional,-150dBC~-165dBC@43dBm*2
4.Good Flatness
5. N Female Design
350-6000MHz Reactive Power splitters are widely used as RF power splitting for distributed antenna systems ,covering 5G inbuilding wireless coverage,cover the different band frequency on 350-3800MHZ 380-3800MHZ 380-6000MHZ for systems optional

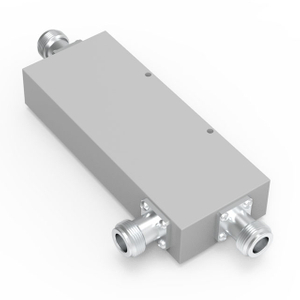

350-6000MHz 340-3800MHz 2 Way N Female Reactive Power Splitter
VN-PS-03560-ON2-xxx.pdf
VN-PS-03438-ON2-xxx.pdf
Part Number | VN-PS-03560-ON2-xxx;VN-PS-03438-ON2-xxx.pdf |
Operating Frequency ( MHz ) | 350-6000 380-6000 340-3800 380-3800 |
Impedance ( Ohm ) | 50 |
VSWR | ≤1.25 |
Split Loss (dB) | ≤3.5 |
IM3 (dBc @ 2*43dBm)@xxx | -150/ -155/ -160/-163/-165 |
Application | Indoor & Outdoor |
Degree of Protection | IP65 |
Operating Temperature ( ℃ ) | -40 ~ + 80 |
Interface | N Female |
Handling Power (Watt, max) | 300 |
Peak Power (Watt, max) | 1200 |
Dimension (mm)(L*W*H, excl connector) | 318*25*25 |
Net Weight (g) | 500g+/-20 |
Packing Dimensions (mm,L*W*H) | 420*80*40 |
Packing Carton Size (mm,L*W*H) | 434*435*195 |
ROHS Compliance | Yes |
Revision | R1 |
Date | 27-Oct-2022 |
