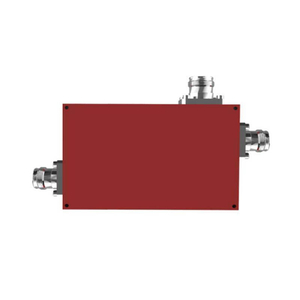

Features：
1.Strip-line and air-dielectric design
2.Frequency 550-3800MHz,550-4000MHz
3.Distributed Antenna System (DAS)
4.In-building wireless signal coverage solution
Our advantages：
1：Low PIM optional ,-150dBc~-165dBc@43dBm*2
2：For 4G and 5G signal T/X and RX
3：Steady design for press-in cavity and connector
4: Low Insertion loss and Low VSWR
5: Customization is acceptable
Specification：
Part Number | VN-DC-05538-ONx-xxx | |||||||
Operating Frequency ( MHz ) | 550-3800MHz | |||||||
Impedance ( Ohm ) | 50 | |||||||
VSWR | ≤1.25 | |||||||
Coupling (dB) | 5 ± 1.2 | 6 ± 1.2 | 7 ± 1.2 | 8± 1.2 | 10± 1.2 | 15 ± 1.5 | 20 ± 1.7 | 30 ± 1.8 |
Insertion Loss (dB) | ≤2.3 | ≤1.8 | ≤1.5 | ≤1.3 | ≤.0.8 | ≤0.6 | ≤0.4 | ≤0.2 |
Isolation (dB) | ≥23 | ≥24 | ≥25 | ≥26 | ≥28 | ≥33 | ≥38 | ≥45 |
IM3 | -150 ~-165(dBc @ 2×43dBm) | |||||||
Application | Indoor/Outdoor | |||||||
Degree of Protection | IP65 | |||||||
Operating Temperature ( ℃ ) | -40 ~ + 80 | |||||||
Interface | N Female | |||||||
Handling Power (Watt) max) | 500 | |||||||
Peak Power | 1500 (Watt, max) | |||||||
Dimension (mm) | 134 × 47× 31 | |||||||
680± 5% | ||||||||
Packing Dimensions (mm) | 240 × 80 × 35 | |||||||
Packing Carton Size (mm) | 500 ×420 × 160 | |||||||
ROHS Compliance | Yes | |||||||
Revision | R1 | |||||||
Date | 22-October-2021 | |||||||
