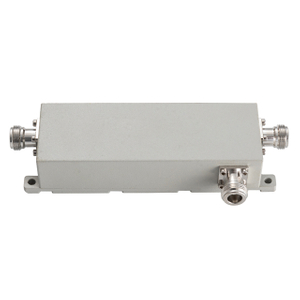

550-4000MHZ 4.3-10 Female Directional Coupler 5dB~30dB for DAS Air Dielectric Design

5 0 Reviews


Availability:

Quantity:

Inquire Add to Basket

Model:
VN-DC-0540-OPx-xxx.doc
Brand:
Vinncom or OEM brand

550-4000MHz Air diectric directional coupler is made with good PIM value with vinncom stable design ,VSWR can be 1.12:1 typically ,and PIM can be -165dBC at 43dBm*2 ,we have different band with Rosenberger passive intermodulation testers

Product Description

Features：

1.Strip-line and air-dielectric design

2.Frequency 550-3800MHz,550-4000MHz

3.Distributed Antenna System (DAS)

4.In-building wireless signal coverage solution

Our advantages：

1：Low PIM optional ,-150dBc~-165dBc@43dBm*2

2：For 4G and 5G signal T/X and RX

3：Steady design for press-in cavity and connector

4: Low VSWR 1:1.15 typically

5: Customization is acceptable

6: Good flatness can be 0.8db

550-4000MHz 4.3-10 Female Air Dielectric Directional Coupler

VN-DC-0540-OPx-xxx.doc.pdf

Part Number	VN-DC-0540-OPx-xxx
Operating Frequency ( MHz )	550-4000MHz
Impedance ( Ohm )	50
VSWR	≤1.25
Coupling (dB)@x	5	6	7	8	10	15	20	30
Tolerance	+/- 1.2	+/- 1.2	+/- 1.2	+/- 1.2	+/- 1.2	+/- 1.5	+/- 1.7	+/- 1.8
Insertion Loss (dB)	≤2.3	≤1.8	≤1.5	≤1.3	≤.0.8	≤0.6	≤0.4	≤0.2
Isolation (dB)	≥23	≥24	≥25	≥26	≥28	≥33	≥38	≥45
IM3 (dBc @ 2*43dBm)@xxx	-150/ -160 / -163/-165
Application	Indoor/Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt) max)	500
Peak Power	1500 (Watt, max)
Dimension (mm)	1344731
Net Weight (g)	680g 5% tolerance
Packing Dimensions (mm)	240 8035
Packing Carton Size (mm)	500420 160
ROHS Compliance	Yes
Revision	R1
Date	22-October-2021
