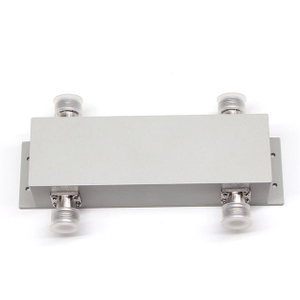

Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner
Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner
Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner
Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner

Low Pim DIN Female 340-3800MHz Hybrid Coupler 380-3800MHz 3dB Hybrid Combiner

5 0 Reviews

Availability:
Quantity:
  • VN-HC2x2-03438-OD-xxx

  • Vinncom or OEM brand

340-3800MHz and 380-3800MHz 2:2 Hybrid couplers is designed for DAS or equipment integration ,it can be used as same band combiner or used to be signal divider , this 3dB hybrid combiner is designed with typical VSWR (1:1.15)and Flatness(less than 0.8dB) for system use and better specs can be designed .
Product Description

Features

1.VSWR can be 1:1.15 typically

2.Good flatness 0.8dB typically

3.Low PIM -160dBc~-165dBc

4.Wide band optional

DIN Female 380-3800MHz  and 340-3800MHz 3dB hybrid combiner is wideband design with air dielectricity used in 5G distributed antenna systems ,usually used as same band combiner to combine different carrier or different band to same band output to antenna


350-3800MHz 380-3800MHz 2in 2out N Female 3dB Hybrid Combiner

3

VN-HC2x2-03538-OD-xxx.pdf


350-3800MHz 2in 2out DIN Female Hybrid Coupler


Part Number

VN-HC2x2-03538-OD-xxx

Operating Frequency ( MHz )

350/380-3800

Impedance ( Ohm )

50

VSWR

1.25

Coupling (dB)

3

Insertion Loss (dB)

+/-1.0

Isolation (dB)

23

IM3 (dBc @ 2*43dBm)@xxx

-150/-153/-161/-165

Application

Indoor & Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

DIN Female

Handling Power (Watt, max)

500

Peak Power (Watt, max)

1500

Dimension (mm)(L*W*H, excl connector)

184.8*44*43

Packing Dimensions (mm,L*W*H)

250*105*50

Packing Carton Size (mm,L*W*H)

565*260*120

Net Weight (g)

1185g+/-5%

ROHS Compliance

Yes

Revision

R1

Date

25-Oct-2022
