broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter
broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter
broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter
broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter

broad band 4way 380-6000MHz 4.3-10 female DAS 380-3800MHz 340-3800MHz 350-6000MHz Low PIM Reactive Power Splitter

5 0 Reviews

Availability:
Quantity:
  • VN-PS-3560-OP4-S-xxx VN-PS-3438-OP4-S-xxx

  • Vinncom or OEM brand

350-6000MHz  380-6000MHz 4.3-10 4f four Power Splitters designed with high power handling and good flatness
Product Description

Features:

1.Reactive Power Splitter Design

2.High Power handling 500watts

3.Low PIM Optional,-150dBC~-165dBC@43dBm*2

4.Good Flatness

4 way broad band power splitters

350-6000MHz 4.3-10 Female Reactive Power splitters are widely used as RF power splitting for distributed antenna systems ,covering 5G inbuilding wireless coverage,cover the different band frequency on 350-3800MHZ 380-3800MHZ 380-6000MHZ for systems optional

微信图片_20230306093513

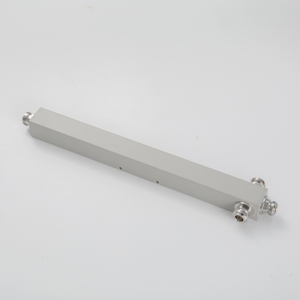

350-6000MHz 340-3800MHz 4 Way 4.3-10 Female Reactive Power Splitter

VN-PS-03560-OP4-xxx.pdf VN-PS-03438-OP4-xxx.pdf


Part Number

VN-PS-03560-OP4-xxx VN-PS-03438-OP4-xxx

Operating Frequency ( MHz )

350-6000 380-6000 340-3800 380-3800

Impedance ( Ohm )

50

VSWR

≤1.3

Split Loss (dB)

7.1

IM3 (dBc @ 2*43dBm)@xxx

-150/ -155/ -160/-163/-165

Application

Indoor & Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

4.3-10 Female

Handling Power (Watt, max)

500

Peak Power (Watt, max)

1500

Dimension (mm)(L*W*H, excl connector)

399*25*25

Net Weight (g)

735g+/-20

Packing Dimensions (mm,L*W*H)

460*80*60

Packing Carton Size (mm,L*W*H)

480*445*275

ROHS Compliance

Yes

Revision

R1

Date

27-Oct-2022
