0-4GHz 100W Low PIM N Male Termination Load -160dBc
  • name

0-4GHz 100W Low PIM N Male Termination Load -160dBc

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-100W-ONm-S-160
3rd PIM:
-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:
OK
ODM:
OK
Connector:
Cusomized
Color:
Silver
Power Handling:
100 Watts (max)
Frequency:
4G
Application:
Indoor & Outdoor
Interface:
N Male
Highlight:

100w Low PIM Termination

,

IP65 Low PIM Termination

,

IP65 100w 50 ohm dummy load

Product Description

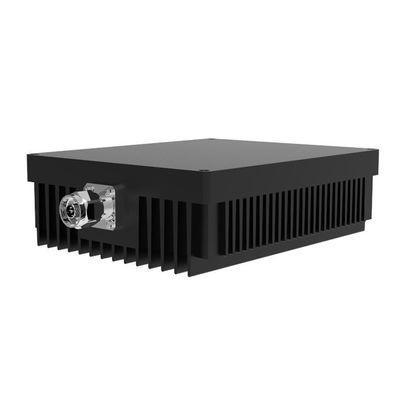

0-4GHz 100W Low PIM N Male Termination Load -160dBc



  • Low PIM up to -160dBc@43dBm*2
  • Good VSWR
  • Wide band



RF Dummy Load model number VN-LD-4G-100W-ONm-S-160.RF Dummy Load are ideal

for low PIM distributed antenna systems (DAS) applications and small cell wireless applications.

For some RF systems , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .



VN-LD-4G-100W-ONm-S-xxx.pdf

Part Number VN-LD-4G-100W-ONm-S-160
Operating Frequency (GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.30 (≤1.2 @ DC-3.8G)
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male
Handling Power (Watt, max) 100
   Dimension (mm)(L×W×H, excl connector)    180X150X62
Net Weight (g) 1865 ± 20
Packing Dimensions (mm,L×W×H) 305 × 170 × 115
Packing Carton Size (mm,L×W×H) 620 × 360 × 180
ROHS Compliance Yes







0-4GHz 100W Low PIM N Male Termination Load -160dBc 00-4GHz 100W Low PIM N Male Termination Load -160dBc 1
