0-4GHz 100W Low PIM DIN F Termination Load

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LD-4G-100W-ODf-S-160

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200pcs per day

Get Best Price
Contact Now
Specifications
Highlight:

-165dbc Low PIM Termination

,

3.8GHZ Low PIM Termination

,

Low PIM dummy load 100 watt

3rd PIM:
-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:
OK
ODM:
OK
Connector:
Cusomized
Color:
Black Or Customized
Power Handling:
100 Watts (max)
Frequency:
4G 6G(max)
3rd PIM:
-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:
OK
ODM:
OK
Connector:
Cusomized
Color:
Black Or Customized
Power Handling:
100 Watts (max)
Frequency:
4G 6G(max)
Description

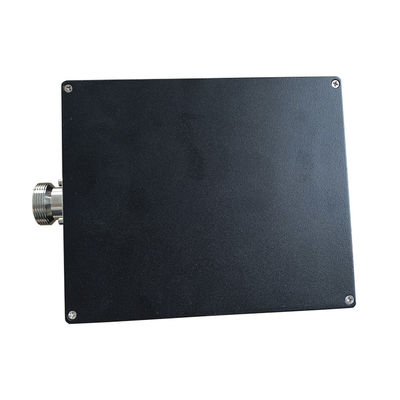

0-4GHz 100W Low PIM DIN F Termination Load

 100 Watts 3.8GHZ 4GHZ 6GHZ DIN Female Low PIM -163dbc -165dbc RF Load Termination



  • Better heating shrink
  • Good VSWR
  • Low PIM



    VN-LD-4G-100W-ODf-S-xxx.pdf

Part Number VN-LD-4G-100W-ODf-S-160
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.30 (≤1.2 @ DC-3.8G)
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 100
   Dimension (mm)(L×W×H, excl connector)    180X150X62
Net Weight (g) 1875 ± 20
Packing Dimensions (mm,L×W×H) 305 × 170 × 115
Packing Carton Size (mm,L×W×H) 620 × 360 × 180
ROHS Compliance Yes









0-4GHz 100W Low PIM DIN F Termination Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
