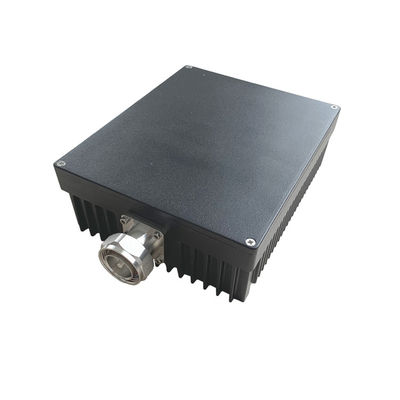

0-4GHz 100W Low PIM DIN M Termination Load

Name: 0-4GHz 100W Low PIM DIN M Termination Load
Brand: Vinncom
SKU: VN-LD-4G-100W-ODm-S-160
Rating: 4.9 (107 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LD-4G-100W-ODm-S-160

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            3800HZ Low PIM Termination, 50 Ohm Low PIM Termination, Low PIM 50 ohm 100 watt dummy load


3rd PIM:	-160~165dbc@43dBm*2 (450~3800MHZ)	OEM:	OK
ODM:	OK	Connector:	Cusomized
Color:	Silver	Power Handling:	100watts (max)
Frequency:	4G

3rd PIM:	-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:	OK
ODM:	OK
Connector:	Cusomized
Color:	Silver
Power Handling:	100watts (max)
Frequency:	4G

Description

0-4GHz 100W Low PIM DIN M Termination Load

100 Watts 3.8GHZ 4GHZ 6GHZ DIN Male Low PIM -163dbc -165dbc RF Load Termination

Wide band frequency
Better heating shrink
Good VSWR

VN-LD-4G-100W-ODm-S-xxx.pdf

Part Number	VN-LD-4G-100W-ODm-S-160
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.30 (≤1.2 @ DC-3.8G)
IM₃ (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	Din Male
Handling Power (Watt, max)	100
Dimension (mm)(L×W×H, excl connector)	180X150X62
Net Weight (g)	1875 ± 20
Packing Dimensions (mm,L×W×H)	305 × 170 × 115
Packing Carton Size (mm,L×W×H)	620 × 360 × 180
ROHS Compliance	Yes
