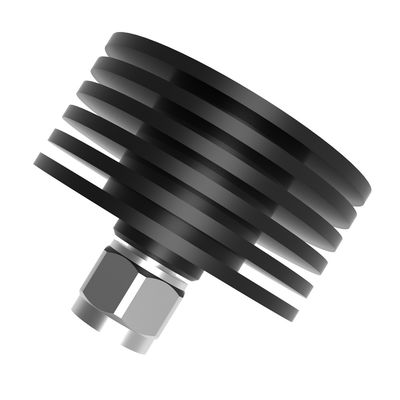

Male Electronic 4.3 10 Termination Load DC 40GHz 10W
  • name
  • name
  • name
  • name

Male Electronic 4.3 10 Termination Load DC 40GHz 10W

MOQ: 5pcs
Price: negotiation
Standard Packaging: foam+box
Delivery Period: 2-4weeks
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 50pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
RoHS/ISO9000
Model Number
VN-DL-40G-20W-2.92M
Operating Frequency:
DC-40GHZ
Impedance ( Ohm ):
50
Application:
Indoor & Outdoor
Degree Of Protection:
IP65
Handling Power (Watt, Max):
20W
Interface:
2.92 Male
Operating Temperature ( ℃ ):
-55~+125℃
VSWR:
1.35max
Highlight:

DC 4.3 10 termination load

,

10W 4.3 10 termination load

,

DC 10w dummy load

Product Description

DC-40GHz 20W 2.92 Male RF Dummy Load



  • Good water resistance
  • Wide band
  • Good VSWR



Part Number VN-DL-40G-20W-2.92M
Operating Frequency DC-40GHZ
Impedance ( Ohm ) 50
Application Indoor & Outdoor
Degree of Protection IP65
Handling Power (Watt, max) 20W
Interface 2.92 Male
Operating Temperature ( ℃ ) -55~+125℃
VSWR 1.35max
Dimension (mm) Φ20*51.5



Male Electronic 4.3 10 Termination Load DC 40GHz 10WMale Electronic 4.3 10 Termination Load DC 40GHz 10W
