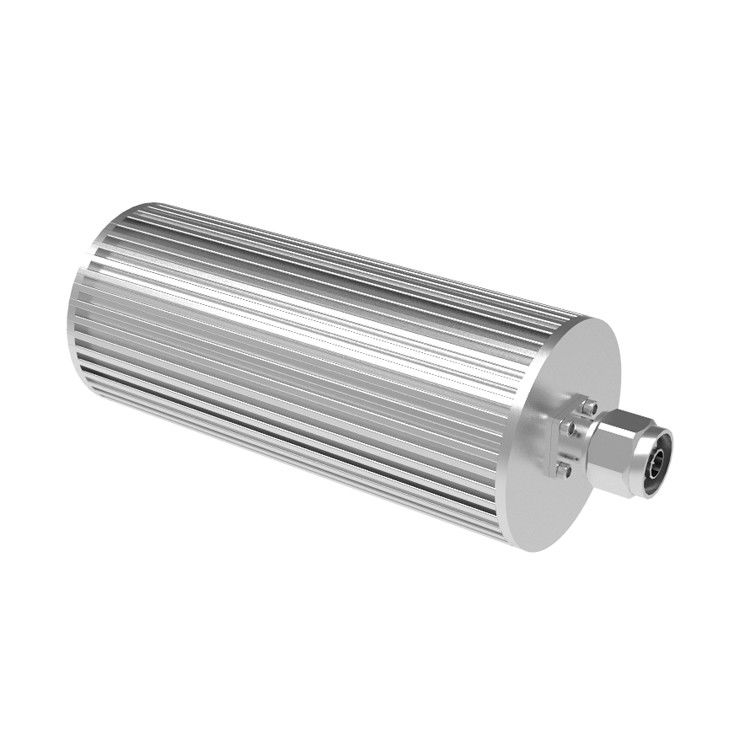

0-4GHz 25W Low PIM N Male Terminator
  • name

0-4GHz 25W Low PIM N Male Terminator

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-25W-INm-R-160
3rd PIM:
-163dbc -165dbc@40dBm*2
OEM:
OK
ODM:
OK
Connector:
N Male
Color:
Silver
Power Handling:
25watts ,40watt (max)
Highlight:

-165dbc Low PIM Termination

,

25W Low PIM Termination

,

25W cb radio dummy load

Product Description

25 Watts  N Male Low PIM -163dbc -165dbc RF Load Termination



  • Wide band frequency
  • Good VSWR
  • Low PIM



    VN-LD-4G-25W-ONm-R-xxx.pdf

Part Number VN-LD-4G-25W-INm-R-160
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.25
IM3 (dBc @ 2×37dBm) -160
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male
Handling Power (Watt, max) 25
   Dimension (mm)(L×W×H, excl connector)    140 × Φ63
Net Weight (g) 715 ± 20
Packing Dimensions (mm,L×W×H) 210 × 65 × 65
Packing Carton Size (mm,L×W×H) 345 × 345 × 220
ROHS Compliance Yes









0-4GHz 25W Low PIM N Male Terminator 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
