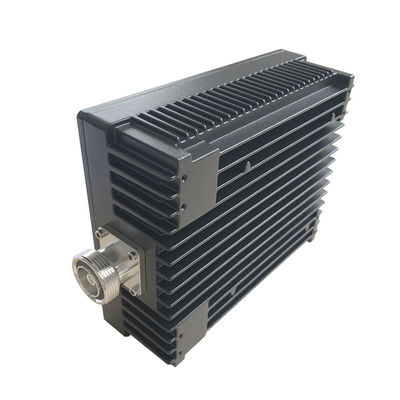

0-4GHz 50W Low PIM DIN F Termination Load
  • name
  • name
  • name
  • name

0-4GHz 50W Low PIM DIN F Termination Load

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-50W-ODf-S-160
3rd PIM:
-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:
OK
ODM:
OK
Connector:
Cusomized
Color:
Black Or Customized
Power Handling:
50watts (max)
Frequency:
4G 6G(max)
Highlight:

50 Watt speaker dummy load

,

4G speaker dummy load

,

4G dummy load 50 watt

Product Description

 50 Watts 3.8GHZ 4GHZ 6GHZ DIN Female Low PIM -163dbc -165dbc RF Load Termination



  • Low PIM
  • Wide band
  • Better heating shrink



    VN-LD-4G-50W-ODf-S-xxx.pdf

Part Number VN-LD-4G-50W-ODf-S-160
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.30 (≤1.2 @ DC-3.8G)
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 50
   Dimension (mm)(L×W×H, excl connector)    180X150X62
Net Weight (g) 1875 ± 20
Packing Dimensions (mm,L×W×H) 305 × 170 × 115
Packing Carton Size (mm,L×W×H) 620 × 360 × 180
ROHS Compliance Yes









0-4GHz 50W Low PIM DIN F Termination Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
