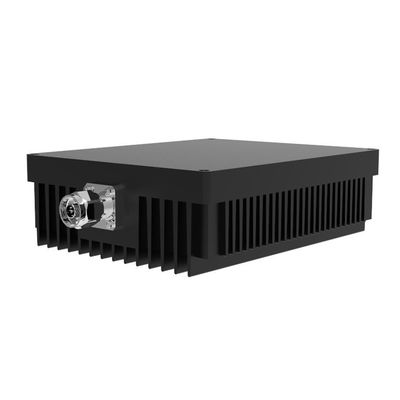

0-4GHz 50W Low PIM N Male Termination Load

Name: 0-4GHz 50W Low PIM N Male Termination Load
Brand: Vinncom
SKU: VN-LD-4G-50W-ONm-S-160
Rating: 4.5 (196 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LD-4G-50W-ONm-S-160

Payment & Shipping Terms

Minimum Order Quantity: 5 pcs

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 200pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            50 Ohm 10 watt dummy load, DC 10 watt dummy load, DC 50 ohm rf load


3rd PIM:	-160~165dbc@43dBm*2 (450~3800MHZ)	OEM:	OK
ODM:	OK	Connector:	Cusomized
Color:	Silver	Power Handling:	50watts (max)
Frequency:	4G

3rd PIM:	-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:	OK
ODM:	OK
Connector:	Cusomized
Color:	Silver
Power Handling:	50watts (max)
Frequency:	4G

Description

0-4GHz 50W Low PIM N Male Termination Load

50 Watts 3.8GHZ 4GHZ 6GHZ N Male Low PIM -163dbc -165dbc RF Load Termination

Wide band frequency
Good VSWR
Low PIM up to -160dBc@43dBm*2

VN-LD-4G-50W-ONm-S-xxx.pdf

Part Number	VN-LD-4G-50W-ONm-S-160
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.30 (≤1.2 @ DC-3.8G)
IM₃ (dBc @ 2×43dBm)	-160
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Male
Handling Power (Watt, max)	50
Dimension (mm)(L×W×H, excl connector)	180X150X62
Net Weight (g)	1865 ± 20
Packing Dimensions (mm,L×W×H)	305 × 170 × 115
Packing Carton Size (mm,L×W×H)	620 × 360 × 180
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
