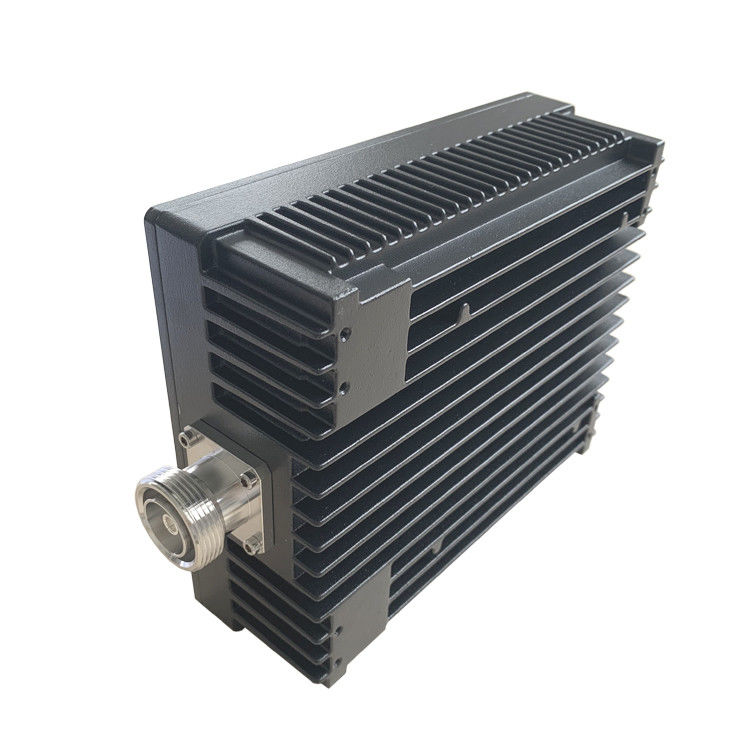

0-4GHz 200W Low PIM DINF Termination Load
  • name
  • name
  • name
  • name

0-4GHz 200W Low PIM DINF Termination Load

MOQ: 5 pcs
Price: Negotiable
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 200pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-200W-ODf-S-160
3rd PIM:
-160~165dbc@43dBm*2 (450~3800MHZ)
OEM:
OK
ODM:
OK
Connector:
Cusomized
Color:
Black Or Customized
Power Handling:
200 Watts (max)
Frequency:
4G 6G(max)
Highlight:

3.8GHZ Low PIM Termination

,

RF Low PIM Termination

,

rf dummy load 50 ohm

Product Description

 200 Watts 3.8GHZ 4GHZ 6GHZ DIN Female Low PIM -163dbc -165dbc RF Load Termination



  • Wide band frequency
  • Better heating shrink
  • Good VSWR



    VN-LD-4G-200W-ODf-S-xxx.pdf

Part Number VN-LD-4G-200W-ODf-S-160
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.30 (≤1.2 @ DC-3.8G)
IM3 (dBc @ 2×43dBm) -160
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 200
   Dimension (mm)(L×W×H, excl connector)    180X150X62
Net Weight (g) 2380 ± 20
Packing Dimensions (mm,L×W×H) 305 × 170 × 115
Packing Carton Size (mm,L×W×H) 620 × 360 × 180
ROHS Compliance Yes







0-4GHz 200W Low PIM DINF Termination Load 0

Tags:

speaker dummy load,

bnc dummy load,

coaxial load
