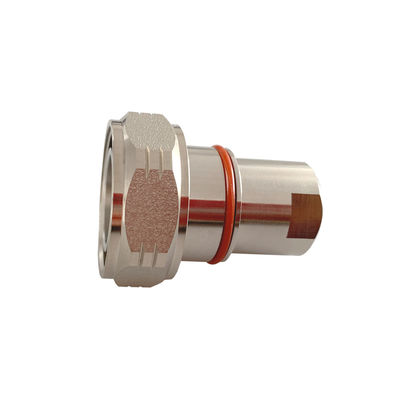

0-4GHz 2W Dummy Load / Termination Load
  • name
  • name
  • name
  • name

0-4GHz 2W Dummy Load / Termination Load

MOQ: 5 PCS
Price: negotiation
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 2000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-2W-ODM
Material:
Copper
Color:
Silver
Plating:
Tri-metal
Power:
2 Watts
Highlight:

2 Watts sma dummy load

,

Tri metal rf load termination

,

Tri metal sma dummy load

Product Description

0-4GHz 2W Dummy Load / Termination Load 00-4GHz 2W Dummy Load / Termination Load



  • Low VSWR
  • Wide band
  • Used to be terminated for signal transit.



VN-LD-4G-2W-ODm.pdf

Part Number VN-LD-4G-2W-ODm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×34dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Male
Handling Power (Watt, max) 2
Dimension (mm)(L×W×H, excl connector) 42 × Φ35
Net Weight (g) 105 ± 10
Packing Dimensions (mm,L×W×H) 41 × 41 × 55
Packing Carton Size (mm,L×W×H) 220 × 220 × 220
ROHS Compliance Yes







0-4GHz 2W Dummy Load / Termination Load 1





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
