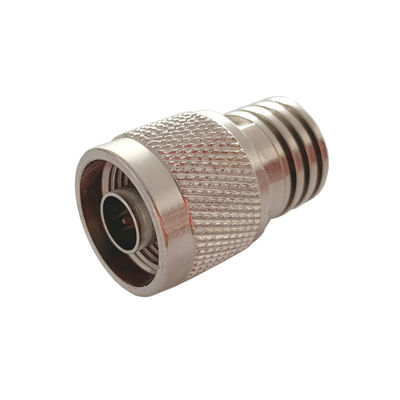

0-4GHz 2W Dummy Load / Termination Load
  • name
  • name
  • name
  • name
  • name

0-4GHz 2W Dummy Load / Termination Load

MOQ: 5pcs
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 2000PCS PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-2W-ONM
Application 1:
Lab Test
Application 2:
Radar System
Application 3:
Wireless
Material:
Copper
VSWR:
1.03~1.20
Frequency:
DC-3.8GHz / 4GHz
Power:
2 Watts
Highlight:

DC 4GHz RF Dummy Load

,

Wireless RF Dummy Load

,

4GHz Wireless Dummy Load

Product Description

0-4GHz 2W Dummy Load / Termination Load



  • Wide band
  • Good VSWR
  • Good water resistance



  VN-LD-4G-2W-ONm.pdf

Part Number VN-LD-4G-2W-ONm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×34dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male
Handling Power (Watt, max) 2
Dimension (mm)(L×W×H, excl connector) 30 × Φ20
Net Weight (g) 35 ± 10
Packing Dimensions (mm,L×W×H) 41 × 41 × 55
Packing Carton Size (mm,L×W×H) 220 × 220 × 220
ROHS Compliance Yes







0-4GHz 2W Dummy Load / Termination Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
