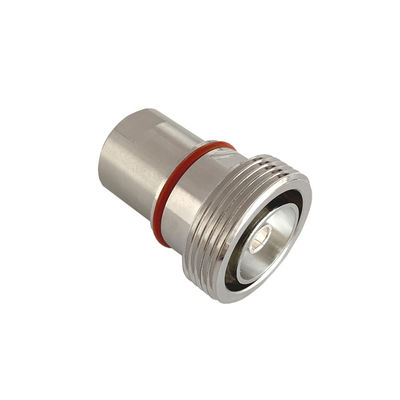

0-4GHz 2W Dummy Load / Termination Load
  • name
  • name
  • name
  • name

0-4GHz 2W Dummy Load / Termination Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, L/C, T/T
Supply Capacity: 1000PCS PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-2W-ODF
Material:
Copper
VSWR:
120:1 Customized
Color:
Silver
Highlight:

2w power supply dummy load

,

rf power supply dummy load

,

2w cantenna dummy load

Product Description

0-4GHz 2W Dummy Load / Termination Load





  • Better heating shrink
  • Wide band
  • Good water resistance



 VN-LD-4G-2W-ODf.pdf

Part Number VN-LD-4G-2W-ODf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×34dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Female
Handling Power (Watt, max) 2
Dimension (mm)(L×W×H, excl connector) 38 × Φ29
Net Weight (g) 85 ± 10
Packing Dimensions (mm,L×W×H) 41 × 41 × 55
Packing Carton Size (mm,L×W×H) 220 × 220 × 220
ROHS Compliance Yes







0-4GHz 2W Dummy Load / Termination Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
