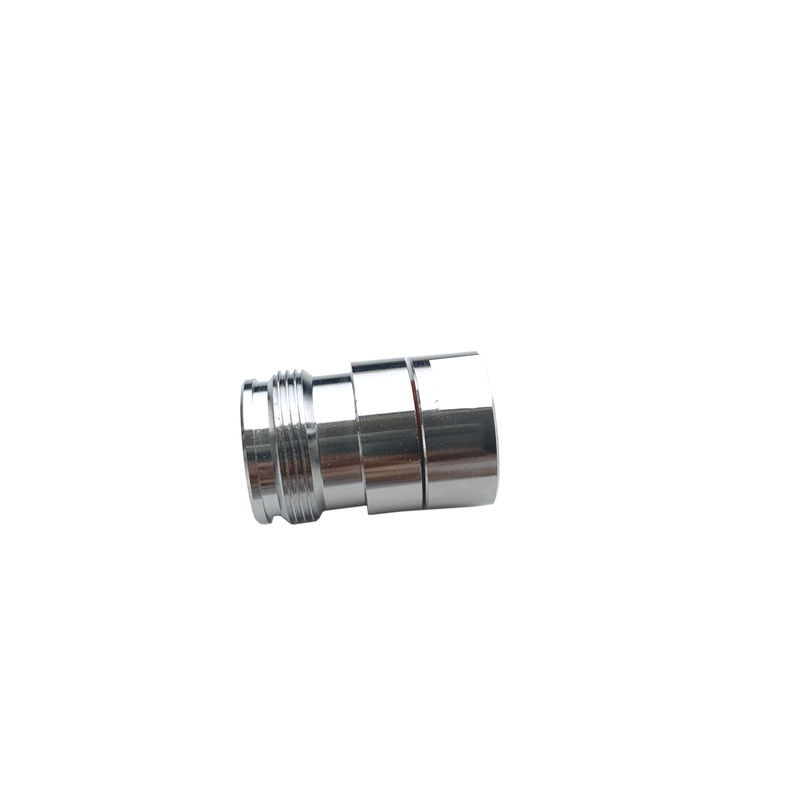

0-4GHz 2W Dummy Load / Termination Load
  • name

0-4GHz 2W Dummy Load / Termination Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1000PCS PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-2W-OPF
Material:
Copper
Connector:
4.3-10 Female
Usage 1:
Antenna System
Usage 2:
Lab Testing
VSWR:
1.2:1 Max
Color:
Silver
Highlight:

4000Hz RF Dummy Load

,

4000Hz 2 Watts RF Dummy Load

,

IP65 low pim load

Product Description

0-4GHz 2W Dummy Load / Termination Load 00-4GHz 2W Dummy Load / Termination Load



  • Better heating shrink
  • Wide band
  • Good VSWR



 VN-LD-4G-2W-OPf.pdf

Part Number VN-LD-4G-2W-OPf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×34dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 2
Dimension (mm)(L×W×H, excl connector) 30 × Φ20
Net Weight (g) 55 ± 10
Packing Dimensions (mm,L×W×H) 41 × 41 × 55
Packing Carton Size (mm,L×W×H) 220 × 220 × 220
ROHS Compliance Yes







0-4GHz 2W Dummy Load / Termination Load 1
