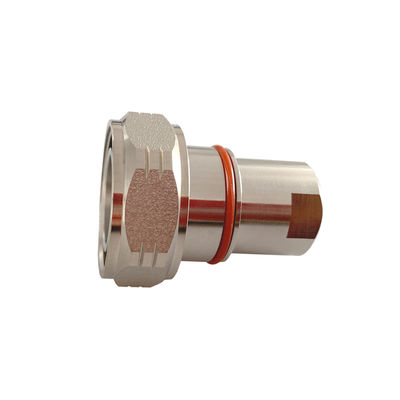

0-4GHz 5W Dummy Load / Termination Load

Name: 0-4GHz 5W Dummy Load / Termination Load
Brand: Vinncom
SKU: VN-LD-4G-5W-ODM
Rating: 4.8 (100 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LD-4G-5W-ODM

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1000 PCS PER DAY

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    5 Watts  Male RF Dummy Load, DIN Male electronic dummy load, DIN Male amp dummy load


Material:	Copper	Connector:	DIN Male
VSWR:	1.20:1 Max	Application:	Antenna System Lab Testing

Material:	Copper
Connector:	DIN Male
VSWR:	1.20:1 Max
Application:	Antenna System Lab Testing

Description

0-4GHz 5W Dummy Load / Termination Load

0-4GHz 5W Dummy Load / Termination Load

Wide band
Good VSWR
Good water resistance

VN-LD-4G-5W-ODm.pdf

Part Number	VN-LD-4G-5W-ODm
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×34dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	DIN Male
Handling Power (Watt, max)	5
Dimension (mm)(L×W×H, excl connector)	42 × Φ35
Net Weight (g)	105 ± 10
Packing Dimensions (mm,L×W×H)	41 × 41 × 55
Packing Carton Size (mm,L×W×H)	220 × 220 × 220
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
