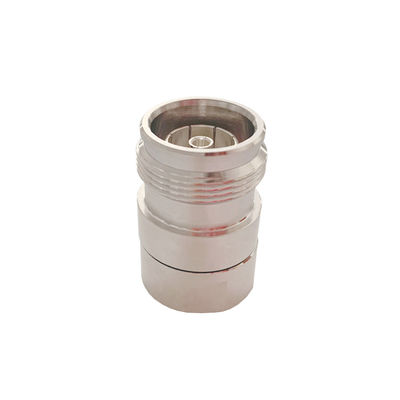

0-4GHz 5W Dummy Load / Termination Load

Name: 0-4GHz 5W Dummy Load / Termination Load
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LD-4G-5W-OPF
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-4G-5W-OPF

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 1000PCS PER DAY

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Female Dummy power absorber, 5 Watts Dummy power absorber, Female RF Termination Dummy load


Connector:	4.3-10 Female	Material:	Copper
VSWR:	1.20:1 Max	Fenquency:	DC-3.8G DC-4.0G

Connector:	4.3-10 Female
Material:	Copper
VSWR:	1.20:1 Max
Fenquency:	DC-3.8G DC-4.0G

Description

0-4GHz 5W Dummy Load / Termination Load

0-4GHz 5W Dummy Load / Termination Load

Better heating shrink
Wide band
Good water resistance

VN-LD-4G-5W-OPf.pdf

Part Number	VN-LD-4G-5W-OPf
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×34dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	5
Dimension (mm)(L×W×H, excl connector)	30 × Φ20
Net Weight (g)	55 ± 10
Packing Dimensions (mm,L×W×H)	41 × 41 × 55
Packing Carton Size (mm,L×W×H)	220 × 220 × 220
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM
