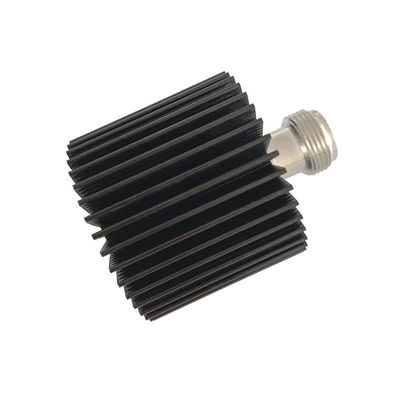

ROHS IP65 Rma RF Dummy Load Antenna For Microwave

Name: ROHS IP65 Rma RF Dummy Load Antenna For Microwave
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LD-4G-10W-ONF
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LD-4G-10W-ONF

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: T/T, D/P, L/C, D/A

Supply Ability: 1000PCS PER DAY

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    IP65 rma dummy antenna, IP65 RF Dummy Load, ROHS  rma dummy antenna


Power Handling:	10 Watts	Inner Conductor:	Copper
Out Conductor:	Aluminum	VSWR:	1.20:1 Customized

Power Handling:	10 Watts
Inner Conductor:	Copper
Out Conductor:	Aluminum
VSWR:	1.20:1 Customized

Description

ROHS IP65 Rma RF Dummy Load Antenna For Microwave

10 Watts 3.8GHz 4GHz N Female RF Dummy Load Termination

Wide band
Good VSWR
Good water resistance

Part Number	VN-LD-4G-10W-ONf
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×37dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Female
Handling Power (Watt, max)	10
Dimension (mm)(L×W×H, excl connector)	39 × Φ47
Net Weight (g)	130 ± 20
Packing Dimensions (mm,L×W×H)	65 × 65 × 85
Packing Carton Size (mm,L×W×H)	350 × 350 × 185
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
