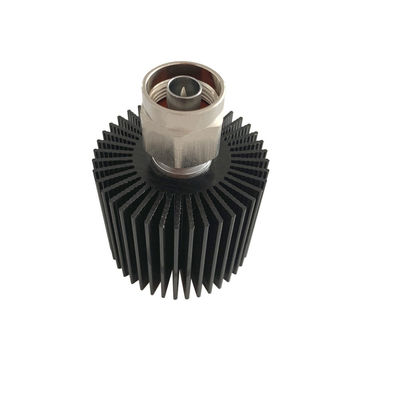

0-4GHz 10W Dummy Load / Termination Load

0-4GHz 10W Dummy Load / Termination Load

MOQ: 5 PCS
Price: negotiation
Payment Method: T/T, D/P, D/A, L/C
Supply Capacity: 1000 PCS PER DAY
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-10W-ONM
Out Conductor:
Alum
Inner Conduct:
Copper
Power Handling:
10 Watts
Color:
Black
Highlight:

10w rf load termination

,

Alum rf load termination

,

Alum sma dummy load

Product Description

0-4GHz 10W Dummy Load / Termination Load 00-4GHz 10W Dummy Load / Termination Load



  • Wide band
  • Good VSWR
  • Good water resistance



VN-LD-4G-10W-ONm.pdf

Part Number VN-LD-4G-10W-ONm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male
Handling Power (Watt, max) 10
Dimension (mm)(L×W×H, excl connector) 39 × Φ47
Net Weight (g) 140 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes







0-4GHz 10W Dummy Load / Termination Load 1





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
