10 Watts DIN Female 3.8GHz Copper BNC Reactive Dummy Load
  • name
  • name
  • name
  • name

10 Watts DIN Female 3.8GHz Copper BNC Reactive Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 1000 pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-10W-ODF
Power Handling:
10 Watts
Connector:
DIN Female
Color:
Black
Material:
Alum For Out ,Copper For Inner
Highlight:

3.8GHz reactive dummy load

,

Copper reactive dummy load

,

Copper bnc dummy load

Product Description

10 Watts DIN Female 3.8GHz 4GHz RF Dummy Load Termination



  • Better heating shrink
  • Wide band
  • Good VSWR



Part Number VN-LD-4G-10W-ODf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 10
Dimension (mm)(L×W×H, excl connector) 39 × Φ47
Net Weight (g) 160 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes

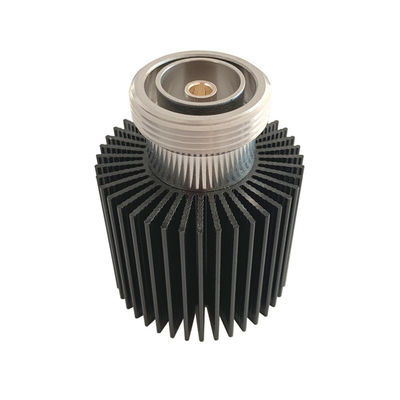

10 Watts DIN Female 3.8GHz Copper BNC Reactive Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
