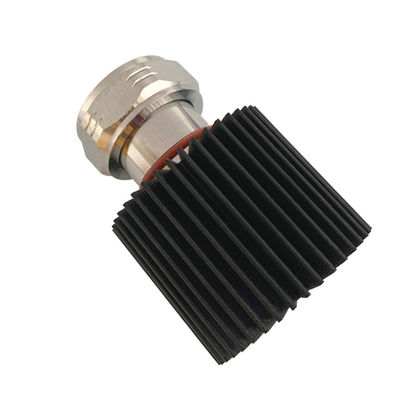

10 Watts DIN Male Electrical Cantenna Dummy Load Communication Applications
  • name
  • name
  • name
  • name

10 Watts DIN Male Electrical Cantenna Dummy Load Communication Applications

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1000PCS PER DAY
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-10W-ODM
Power Handling:
10 Watts
Color:
Black
Connector:
DIN Male
Material:
Alum For Out Conductor , Copper For Inner
Highlight:

10 Watts cantenna dummy load

,

DIN Male cantenna dummy load

,

DIN Male electrical dummy load

Product Description

10 Watts DIN Male 3.8GHz 4GHz RF dummy load termination



  • Good VSWR
  • Good water resistance
  • Better heating shrink



Part Number VN-LD-4G-10W-ODm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Male
Handling Power (Watt, max) 10
Dimension (mm)(L×W×H, excl connector) 39 × Φ47
Net Weight (g) 200 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes







10 Watts DIN Male Electrical Cantenna Dummy Load Communication Applications 0







Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
