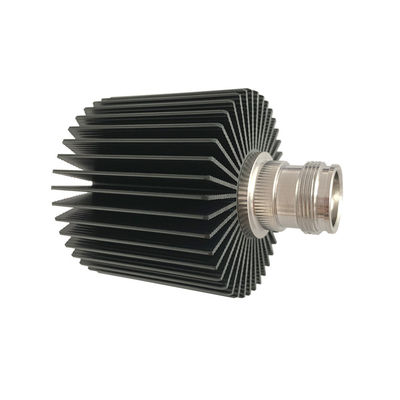

30 Watt Mini 4.3-10 Female Dummy Load For Amplifier Testing
  • name
  • name
  • name
  • name

30 Watt Mini 4.3-10 Female Dummy Load For Amplifier Testing

MOQ: 5 PCS
Price: negotiation
Payment Method: D/P, D/A, L/C, T/T
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-30W-OPF
Connector:
4.3-10 Female
Color:
Black
Material:
Copper Inside Alum Outside
Band Width:
DC-4GHz
Highlight:

30W Dummy Load For Amplifier Testing

,

4GHz dummy load for amplifier testing

,

Mini DIN Female Dummy Load

Product Description

30 Watts 4.3-10 Female 3.8GHz 4GHz RF Dummy Load Termination



  • Better heating shrink
  • Wide band
  • Good VSWR



Part Number VN-LD-4G-30W-OPf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 30
Dimension (mm)(L×W×H, excl connector) 50 × Φ60
Net Weight (g) 210 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes







30 Watt Mini 4.3-10 Female Dummy Load For Amplifier Testing 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
