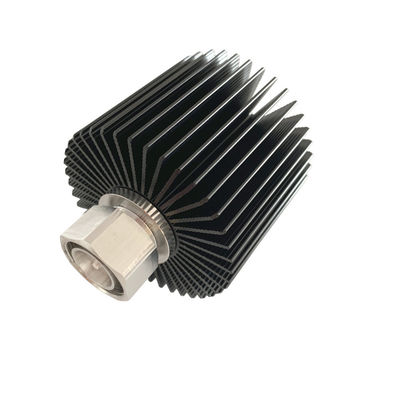

Indoor 30 Watt DC-4.0GHz Rf Dummy Load 50 Ohm
  • name
  • name
  • name
  • name

Indoor 30 Watt DC-4.0GHz Rf Dummy Load 50 Ohm

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-30W-OPM
Frequency:
DC-3.8 DC-4.0G
Connector:
4.3-10 Male
Color:
Black
VSWR:
1.20:1 Max
Highlight:

4.0GHz DC Dummy Load

,

Indoor 30Watt Rf Dummy Load

,

Rf Dummy Load 50 Ohm

Product Description

30 Watts DC-3.8/4.0GHz 4.3-10 Male RF Dummy Load



  • Better heating shrink
  • Wide band
  • Good VSWR



Part Number VN-LD-4G-30W-OPm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Male
Handling Power (Watt, max) 30
Dimension (mm)(L×W×H, excl connector) 50 × Φ60
Net Weight (g) 210 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes







Indoor 30 Watt DC-4.0GHz Rf Dummy Load 50 Ohm 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
