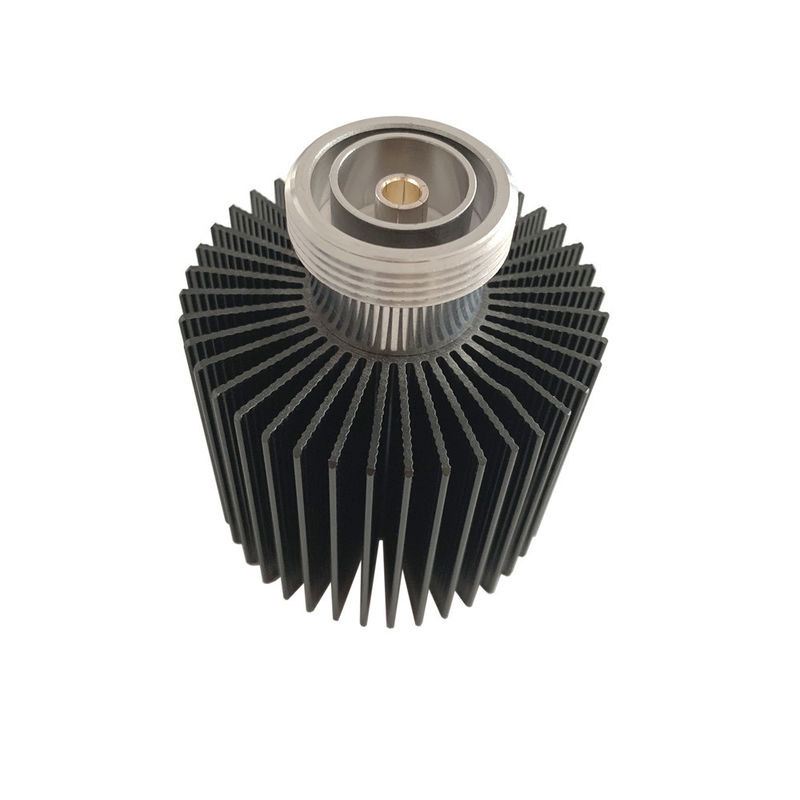

30W DC-3.8GHz DIN Female RF Dummy Load
  • name
  • name
  • name
  • name

30W DC-3.8GHz DIN Female RF Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-30W-ODF
Material:
Copper Inside Alum Outside
Color:
Black
Connector:
DIN Female
Frequency:
DC-4GHz
Highlight:

DIN Female RF Dummy Load

,

30W RF Dummy Load

,

3.8GHz DC Dummy Load

Product Description

30 Watts DC-3.8/4.0GHz DIN Female RF Dummy Load Termination



  • Wide band
  • Good VSWR
  • Good water resistance



Part Number VN-LD-4G-30W-ODf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×37dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 30
Dimension (mm)(L×W×H, excl connector) 50 × Φ60
Net Weight (g) 220 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 85
Packing Carton Size (mm,L×W×H) 350 × 350 × 185
ROHS Compliance Yes







30W DC-3.8GHz DIN Female RF Dummy Load 0







Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
