30 Watts 3.8G DIN Male RF Dummy Load Termination

Name: 30 Watts 3.8G DIN Male RF Dummy Load Termination
Brand: Vinncom
SKU: VN-LD-4G-30W-ODM
Rating: 4.8 (113 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-4G-30W-ODM

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: D/A, D/P, T/T, L/C

Supply Ability: 1000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                    30 Watts 3.8G RF Dummy Load, 30 Watts 3.8G RF Dummy Load, 3.8G DIN Male low pim load


Description

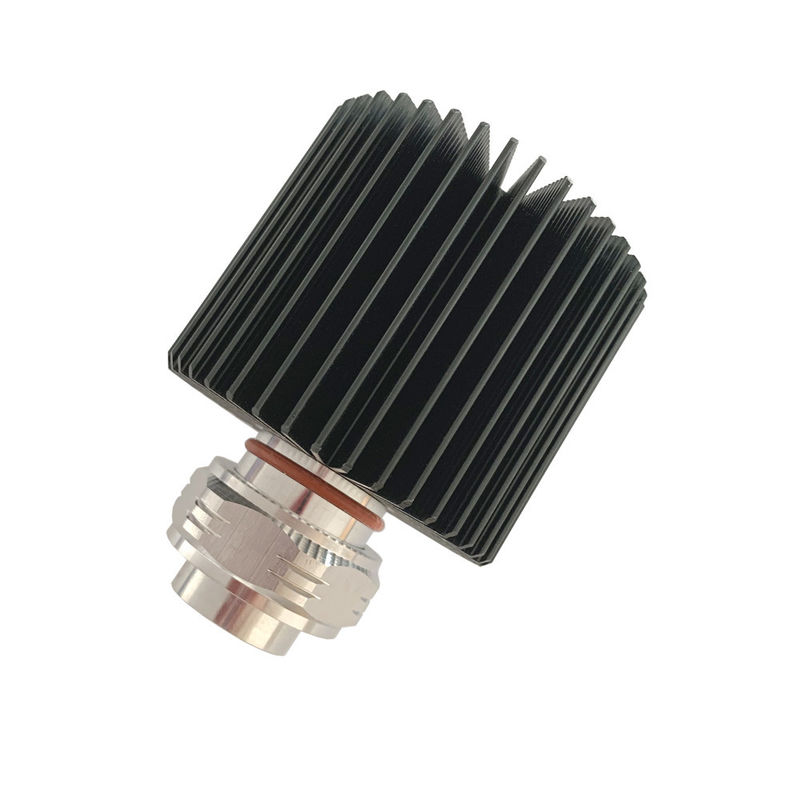

30 Watts 3.8G DIN Male RF Dummy Load Termination

30 Watts 3.8GHz 4GHz DIN Male RF Dummy Load Termination

Wide band
Good VSWR
Good water resistance

Part Number	VN-LD-4G-30W-ODm
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×37dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	Din Male
Handling Power (Watt, max)	30
Dimension (mm)(L×W×H, excl connector)	50 × Φ60
Net Weight (g)	250 ± 20
Packing Dimensions (mm,L×W×H)	65 × 65 × 85
Packing Carton Size (mm,L×W×H)	350 × 350 × 185
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
