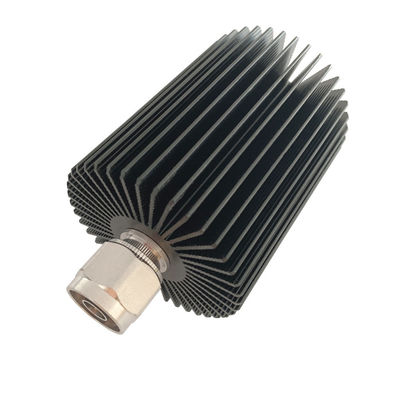

IP65 0-4MHz N Male 4G 50w Dummy Load

Name: IP65 0-4MHz N Male 4G 50w Dummy Load
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LD-4G-50W-INM
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-4G-50W-INM

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: D/A, D/P, T/T, L/C

Supply Ability: 1200pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    4G 50w Dummy Load, IP65 N Male Dummy Load, 4G 0-4MHz uhf dummy load


Power Handling:	50 Watts	Connector:	N Male
Color:	Black	Frequency:	DC-3.8GHz 4GHz

Power Handling:	50 Watts
Connector:	N Male
Color:	Black
Frequency:	DC-3.8GHz 4GHz

Description

IP65 0-4MHz N Male 4G 50w Dummy Load

50 Watts N Male 3.8GHz 4GHz RF Dummy Load Termination

Better heating shrink
Wide band
Good VSWR

Part Number	VN-LD-4G-50W-INm
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×43dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	N Male
Handling Power (Watt, max)	50
Dimension (mm)(L×W×H, excl connector)	75 × Φ60
Net Weight (g)	270 ± 20
Packing Dimensions (mm,L×W×H)	65 × 65 × 105
Packing Carton Size (mm,L×W×H)	350 × 350 × 225
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
