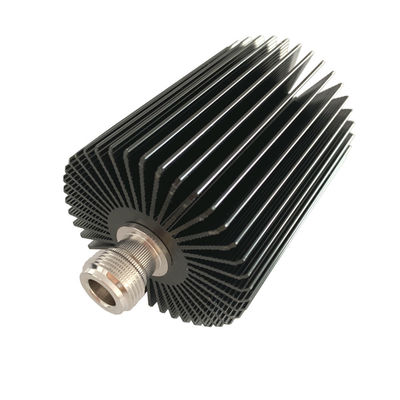

Alum Outside -120dBc N Female RF Dummy Load
  • name
  • name
  • name
  • name

Alum Outside -120dBc N Female RF Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: T/T, D/P, D/A, L/C
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-50W-ONF
Power Handling:
50 Watts
Material:
Alum Outside Copper Inside
Connector:
N Female
Frequency:
3.8GHz 4GHZ
Highlight:

N Female RF Dummy Load

,

-120dBc RF Dummy Load

,

Alum altronic dummy load

Product Description

50 Watts RF Dummy Load N Female 3.8GHz 4GHz RF Termination



  • Better heating shrink
  • Wide band
  • Good VSWR



Part Number VN-LD-4G-50W-ONf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 50
Dimension (mm)(L×W×H, excl connector) 75 × Φ60
Net Weight (g) 260 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 105
Packing Carton Size (mm,L×W×H) 350 × 350 × 225
ROHS Compliance Yes







Alum Outside -120dBc N Female RF Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
