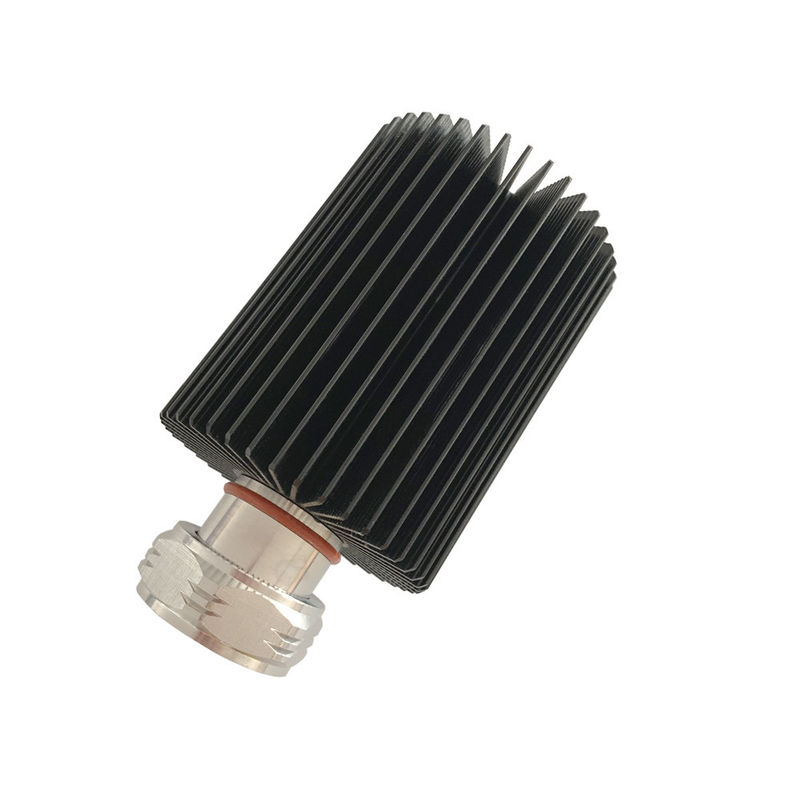

0-4GHz 50W DIN Male Dummy Load
  • name
  • name
  • name
  • name

0-4GHz 50W DIN Male Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 1000pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-50W-IDM
Material:
Alum And Copper
Power Handling:
50 Watts
Connector:
DIN Male
Color:
Black
Highlight:

DIN Male RF Dummy Load

,

50W RF Dummy Load

,

Alum Copper rf termination load

Product Description

0-4GHz 50W DIN Male Dummy Load



  • Wide band
  • Good VSWR
  • Good water resistance



VN-LD-4G-50W-IDM-S.pdf

Part Number VN-LD-4G-50W-IDm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Male
Handling Power (Watt, max) 50
Dimension (mm)(L×W×H, excl connector) 75 × Φ60
Net Weight (g) 310 ± 20
Packing Dimensions (mm,L×W×H) 65 × 65 × 105
Packing Carton Size (mm,L×W×H) 350 × 350 × 225
ROHS Compliance Yes







0-4GHz 50W DIN Male Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
