0-4GHz 100W 4.3-10 Female Dummy Load

0-4GHz 100W 4.3-10 Female Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: L/C, D/A, D/P, T/T
Supply Capacity: 900 pcs per day
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-100W-IPF
Color:
Black
Connector:
4.3-10 Female
Power Handling:
100 Watts
Frequency:
DC-3.8GHz DC-4GHz
Highlight:

IP65 Waveguide Dummy Load

,

Outdoor Waveguide Dummy Load

,

4G-100W altronic dummy load

Product Description

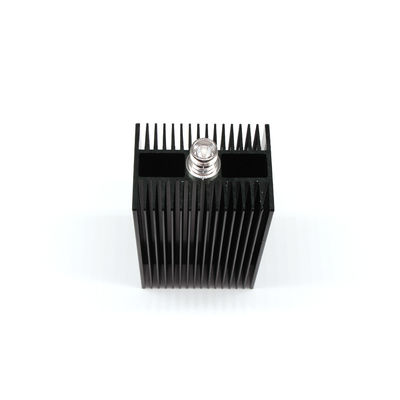

0-4GHz 100W 4.3-10 Female Dummy Load



  • Better heating shrink
  • Wide band
  • Good VSWR



 VN-LD-4G-100W-IPf-S.pdf

Part Number VN-LD-4G-100W-IPf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Female
Handling Power (Watt, max) 100
Dimension (mm)(L×W×H, excl connector) 160×100×73
Net Weight (g) 1210 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes







0-4GHz 100W 4.3-10 Female Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
