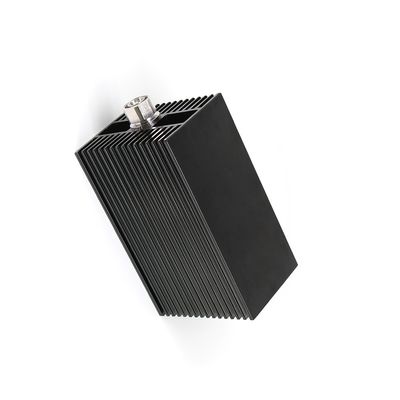

DAS Antenna System Mini DIN Male 50 Ohm 100 Watt Dummy Load
  • name

DAS Antenna System Mini DIN Male 50 Ohm 100 Watt Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 800pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-DL-4G-100W-OPM
Connector:
4.3-10 Male
Power Handling:
100 Watts
Color:
Black
Application:
DAS Antenna System
Highlight:

Mini DIN Male 50 ohm 100 watt dummy load

,

DAS Antenna 50 ohm 100 watt dummy load

,

diy 50 ohm dummy load

Product Description

100 Watts 4.3-10 Male 3.8GHz 4GHz RF Dummy Load Termination



  • Wide band
  • Good VSWR
  • Good water resistance



Part Number VN-LD-4G-100W-OPm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Male
Handling Power (Watt, max) 100
Dimension (mm)(L×W×H, excl connector) 160×100×73
Net Weight (g) 1220 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes







DAS Antenna System Mini DIN Male 50 Ohm 100 Watt Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .





Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
