0-4GHz 100W DIN Male Dummy Load

Name: 0-4GHz 100W DIN Male Dummy Load
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LD-4G-100W-IDM
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ROHS ISO9000

Model Number: VN-LD-4G-100W-IDM

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: D/A, D/P, T/T, L/C

Supply Ability: 700pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    3.8G  50Ohm RF Dummy Load, 3.8G RF Dummy Load, 3.8G 100W DIN Male rf termination


Material:	Alum Outside And Copper Inside	Power Handling:	100 Watts
Frequency:	DC-3.8GHz DC-4GHz	Application:	DAS And Lab Testing

Material:	Alum Outside And Copper Inside
Power Handling:	100 Watts
Frequency:	DC-3.8GHz DC-4GHz
Application:	DAS And Lab Testing

Description

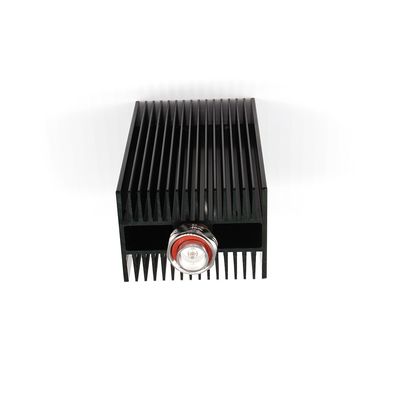

0-4GHz 100W DIN Male Dummy Load

0-4GHz 100W DIN Male Dummy Load

Wide band
Good VSWR
Good water resistance

VN-LD-4G-100W-IDm-S.pdf

Part Number	VN-LD-4G-100W-IDm
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×43dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	Din Male
Handling Power (Watt, max)	100
Dimension (mm)(L×W×H, excl connector)	160×100×73
Net Weight (g)	1260 ± 20
Packing Dimensions (mm,L×W×H)	260 × 135 × 120
Packing Carton Size (mm,L×W×H)	540 × 155 × 500
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
