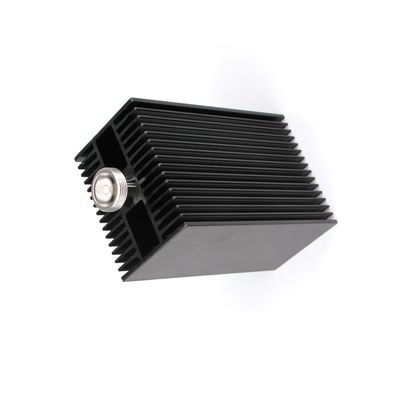

DIN Female Connector DC-3.8GHz 100 Watt Dummy Load
  • name
  • name

DIN Female Connector DC-3.8GHz 100 Watt Dummy Load

MOQ: 5 PCS
Price: negotiation
Payment Method: D/P, D/A, T/T, L/C
Supply Capacity: 700pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-DL-4G-100W-ODF
Material:
Alum Outside Copper Inside
Color:
Black
Application:
DAS IBS BTS Lab Testing
Frequency:
4GHz
Highlight:

DC-3.8GHz Connector Dummy Load

,

DIN Female Dummy Load

,

100 Watt Dummy Load

Product Description

100 Watts DIN Female DC-3.8GHz DC-4GHz RF Dummy Load Termination



  • Wide band
  • Good VSWR
  • Good water resistance



Part Number VN-LD-4G-100W-ODf
Operating Frequency (GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 100
Dimension (mm)(L×W×H, excl connector) 160×100×73
Net Weight (g) 1230 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes







DIN Female Connector DC-3.8GHz 100 Watt Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
