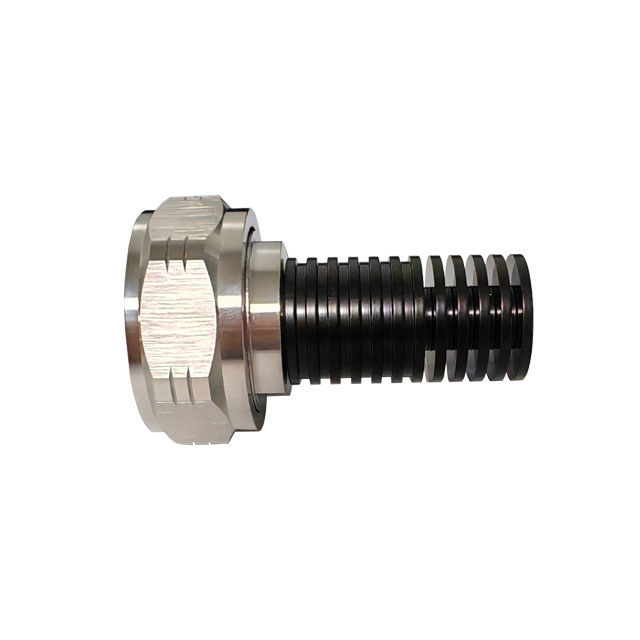

DC-6GHz 10W Dummy Load /Termination Load Din Male
DC-6GHz 10W Dummy Load /Termination Load Din Male
DC-6GHz 10W Dummy Load /Termination Load Din Male

DC-6GHz 10W Dummy Load /Termination Load Din Male

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-6G-10W-ODm-R

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: D/A, D/P, T/T, L/C

Supply Ability: 500pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

4GHz RF Dummy Load

,

4.3-10 Female RF Dummy Load

,

200 Watts rf termination load

Connector:
DIN Male
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Connector:
DIN Male
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Description
DC-6GHz 10W Dummy Load /Termination Load Din Male

DC-6GHz 10W Dummy Load /Termination Load



  • Better heating shrink
  • Wide band

  • Better heating shrink

​

                                                                                                                                                        VN-LD-6G-10W-ODm-R.pdf

Part Number VN-LD-6G-10W-ODm-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface DIN Male
Handling Power (Watt, max) 10
Dimension (mm)(L×W×H, excl connector) Φ35X52.1
Packing Dimensions(mm)(L×W×H) 65X65X85
Packing Carton Size(mm)(L×W×H) 350X350X185
ROHS Compliance Yes
Revision R1







                                                                                                                                       DC-6GHz 10W Dummy Load /Termination Load Din Male 0DC-6GHz 10W Dummy Load /Termination Load Din Male 1
