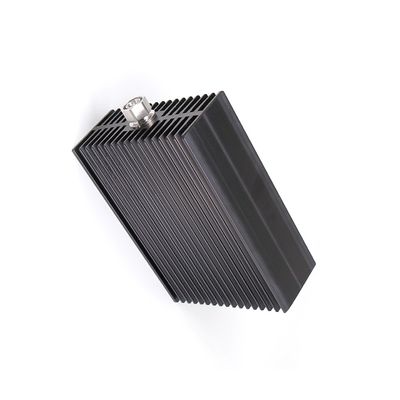

200 Watts 4.3-10 Male DC-4G Altronic Dummy Load

Name: 200 Watts 4.3-10 Male DC-4G Altronic Dummy Load
Brand: Vinncom
SKU: VN-LD-4G-200W-OPM
Rating: 4.7 (190 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-4G-200W-OPM

Payment & Shipping Terms

Minimum Order Quantity: 5

Payment Terms: D/A, D/P, L/C, T/T

Supply Ability: 500pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    DC-4G Altronic Dummy Load, 4.3-10 Male Altronic Dummy Load, 200 Watts uhf dummy load


Connector:	4.3-10 Male	Color:	Black
Application:	Lab Test BTS DAS	Frequency:	DC-4G Max

Connector:	4.3-10 Male
Color:	Black
Application:	Lab Test BTS DAS
Frequency:	DC-4G Max

Description

200 Watts 4.3-10 Male DC-4G Altronic Dummy Load

200 Watts 4.3-10 Male 3.8GHz 4GHz RF Dummy Load Termination

Better heating shrink
Wide band
Good VSWR

Part Number	VN-LD-4G-200W-OPm
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×43dBm)	-120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male
Handling Power (Watt, max)	200
Dimension (mm)(L×W×H, excl connector)	200×142×65
Net Weight (g)	2050 ± 20
Packing Dimensions (mm,L×W×H)	300 × 170 × 120
Packing Carton Size (mm,L×W×H)	620 × 500 × 190
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
