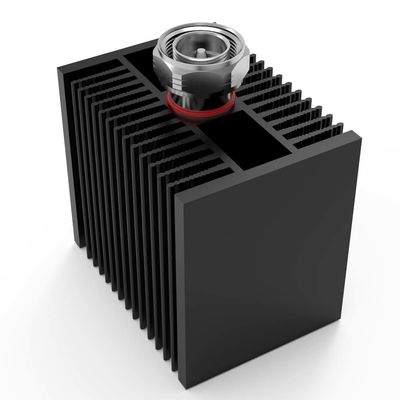

ROHS DIN Male 60w~80w Dummy Load
  • name
  • name
  • name
  • name

ROHS DIN Male 60w~80w Dummy Load

MOQ: 5 PCS
Price: Negotiable
Payment Method: D/A, D/P, T/T, L/C, T/T
Supply Capacity: 900pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-60~80W-ODM
Design:
Integrated Design
Connector:
DIN Male
Material:
Alum Outside Copper Inside
Color:
Black
OEM/ODM:
Ok
Application:
DAS Lab Test... Etc.
Highlight:

925 ± 20g Dummy Load

,

ROHS DIN Male Dummy Load

,

ROHS Adjustable Current Dummy Load

Product Description

80 Watts 3.8GHz 4GHz DIN Male RF Dummy Load Termination



  • Wide band
  • Good VSWR
  • Good water resistance



Part Number VN-LD-4G-80W-ODm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Male
Handling Power (Watt, max) 80
Dimension (mm)(L×W×H, excl connector) 100×100×73
Net Weight (g) 925 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes







ROHS DIN Male 60w~80w Dummy Load 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .

Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
