ISO 4G 50 Ohm RF Dummy Load Termination DIN Female 60w~80W
  • name
  • name
  • name
  • name

ISO 4G 50 Ohm RF Dummy Load Termination DIN Female 60w~80W

MOQ: 5 PCS
Price: Negotiable
Payment Method: T/T, D/P, D/A, L/C
Supply Capacity: 900pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ROHS ISO9000
Model Number
VN-LD-4G-60~80W-ODf
Design:
Integrated Design
Color:
Black
Materail:
Alum Outside Copper Inside
OEM/ODM:
OK
Applicaiton:
DAS Lab Testing... Etc
Connector:
Din Female
Highlight:

4G RF Dummy Load

,

RF Dummy Load Termination

,

50 Ohm termination load

Product Description

80 Watts 3.8GHz 4GHz DIN Female Rf Termination Dummy Load



  • Good VSWR
  • Good water resistance
  • Better heating shrink



Part Number VN-LD-4G-60~80W-ODf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface Din Female
Handling Power (Watt, max) 80
Dimension (mm)(L×W×H, excl connector) 100×100×73
Net Weight (g) 895 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes

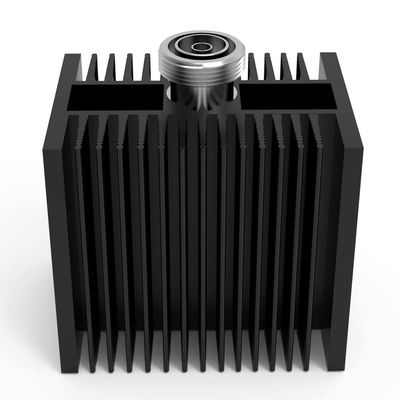

ISO 4G 50 Ohm RF Dummy Load Termination DIN Female 60w~80W 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
