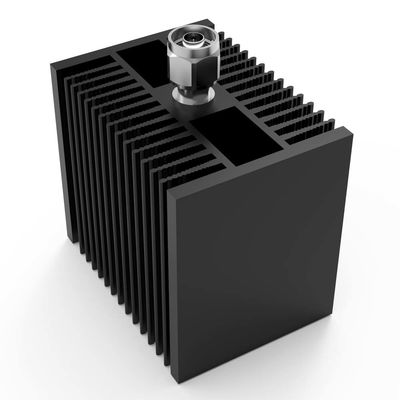

High Power 50 Ohm RF Load terminator 450MHz~2600MHz
  • name
  • name
  • name
  • name

High Power 50 Ohm RF Load terminator 450MHz~2600MHz

MOQ: 5 PCS
Price: Negotiable
Payment Method: D/A, L/C, D/P, T/T
Supply Capacity: 800 pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-60~80W-ONM
Material:
Alum Outside Copper Inside
Connector:
N Male
Design:
Integrated Design
Application:
DAS Lab Testing...etc.
Color:
Black
3rd PIM:
-130dBc @43dbm*2 (450~2600MHz)
Highlight:

High Power 50 ohm rf load

,

50 ohm rf load Terminator

,

2600MHz high power rf load

Product Description

80 Watts N Male 3.8GHz 4GHz RF Dummy Load Termination



  • Wide band
  • Good VSWR
  • Good water resistance



Part Number VN-LD-4G-60~80W-ONm
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male
Handling Power (Watt, max) 80
Dimension (mm)(L×W×H, excl connector) 100×100×73
Net Weight (g) 875 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes







High Power 50 Ohm RF Load terminator 450MHz~2600MHz 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .

Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
