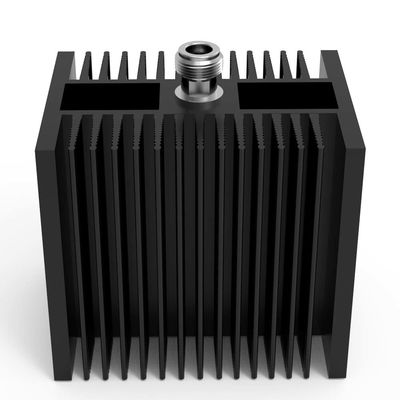

Integrated N Female RF Dummy Load 60w~80w 3.8 GHz Low PIM

Integrated N Female RF Dummy Load 60w~80w 3.8 GHz Low PIM

MOQ: 5 PCS
Price: Negotiable
Payment Method: D/P, D/A, L/C, T/T
Supply Capacity: 800 pcs per day
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-4G-60~80W-ONF
Connector:
N Female
Color:
Black
Power Handlding:
60~80 Watts
Design:
Integrated Design
Material:
Alum Outside Copper Inside
Highlight:

Integrated RF Dummy Load

,

IP65 80w RF Dummy Load

,

3.8 GHz dummy load antenna

Product Description

60~80 Watts 3.8GHz 4GHz N Female Rf Dummy Road Termination



  • Better heating shrink
  • Wide band
  • Good VSWR



Part Number VN-LD-4G-60~80W-ONf
Operating Frequency ( GHz ) 0-4
Impedance ( Ohm ) 50
VSWR ≤1.20
IM3 (dBc @ 2×43dBm) -110 / -120
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 80
Dimension (mm)(L×W×H, excl connector) 100×100×73
Net Weight (g) 865 ± 20
Packing Dimensions (mm,L×W×H) 260 × 135 × 120
Packing Carton Size (mm,L×W×H) 540 × 155 × 500
ROHS Compliance Yes







Integrated N Female RF Dummy Load 60w~80w 3.8 GHz Low PIM 0





Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
