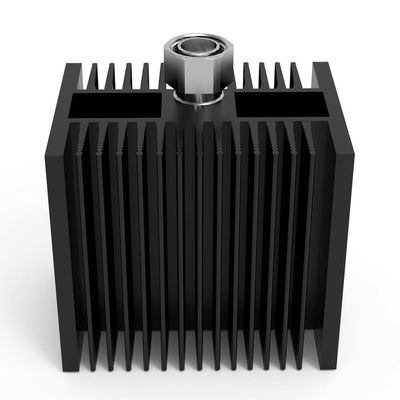

Male 4GHz RF Termination Antenna Dummy Load 4.3-10 Black

Name: Male 4GHz RF Termination Antenna Dummy Load 4.3-10 Black
Brand: Vinncom
SKU: VN-LD-4G-80W-OPM
Rating: 4.7 (165 reviews)

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-4G-80W-OPM

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: D/A, L/C, D/P, T/T

Supply Ability: 900pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    4GHz antenna dummy load, Male antenna dummy load, 4GHz rf termination load


Connector:	4.3-10 Male	Color:	Black
Material:	Alum Outside Copper Inside	Frequency:	DC-4GHz

Connector:	4.3-10 Male
Color:	Black
Material:	Alum Outside Copper Inside
Frequency:	DC-4GHz

Description

Male 4GHz RF Termination Antenna Dummy Load 4.3-10 Black

80 Watts 4.3-10 Male 3.8GHz 4GHz RF Dummy Load Termination

Better heating shrink
Good VSWR
Good water resistance

Part Number	VN-LD-4G-60~80W-OPm
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×43dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male
Handling Power (Watt, max)	80
Dimension (mm)(L×W×H, excl connector)	100×100×73
Net Weight (g)	885± 20
Packing Dimensions (mm,L×W×H)	260 × 135 × 120
Packing Carton Size (mm,L×W×H)	540 × 155 × 500
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
