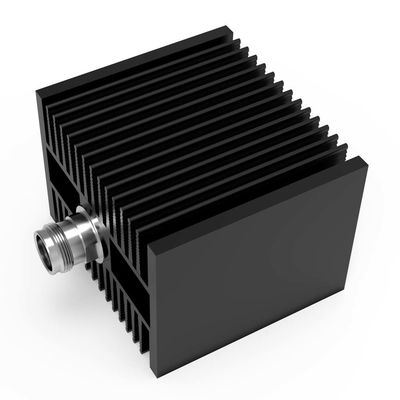

Mini DIN Female RF Dummy Load 60w 80 Watt 3.8GHz

Name: Mini DIN Female RF Dummy Load 60w 80 Watt 3.8GHz
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LD-4G-60~80W-OPF
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-4G-60~80W-OPF

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 900pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    60w RF Dummy Load, 80 Watt RF Dummy Load, 3.8GHz 60w dummy load


Connector:	4.3-10 Female	Color:	Black
Material:	Alum Outside Copper Inside	Frequency:	DC-4GHz

Connector:	4.3-10 Female
Color:	Black
Material:	Alum Outside Copper Inside
Frequency:	DC-4GHz

Description

Mini DIN Female RF Dummy Load 60w 80 Watt 3.8GHz

60w 80 Watts 4.3-10 Female 3.8GHz 4GHz RF Dummy Load Termination

Better heating shrink
Wide band
Good VSWR

Part Number	VN-LD-4G-80W-OPf
Operating Frequency ( GHz )	0-4
Impedance ( Ohm )	50
VSWR	≤1.20
IM₃ (dBc @ 2×43dBm)	-110 / -120
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Female
Handling Power (Watt, max)	80
Dimension (mm)(L×W×H, excl connector)	100×100×73
Net Weight (g)	875 ± 20
Packing Dimensions (mm,L×W×H)	260 × 135 × 120
Packing Carton Size (mm,L×W×H)	540 × 155 × 500
ROHS Compliance	Yes

Dummy load/Low PIM Termination/Load is a device used to stop some port as a RF power load when testing other RF products or stop the RF power radiation when some port is not used at present , the theory is matching similar impedance to real device that will be connected to the RF System. Dummy load also will absorb some power and getting heating when RFA system works, so when use dummy load to stop some port in the RF system, pay attention to the power handling , otherwise may be over-heated .

Vinncom will supply dummy loads in different power for different frequency range, it can be up to 67GHz .

For some RF system , it will need good PIM value, vinncom can supply -130dbc,-140dbc and -165dbc PIM .
