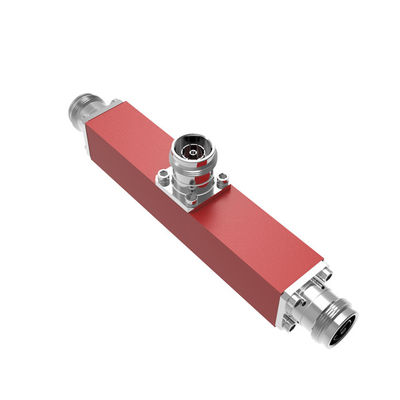

6dB 138-960MHz N Female Tapper

Name: 6dB 138-960MHz N Female Tapper
Brand: vinncom
SKU: VN-TAP-019096-ON6-160
Price: 7 USD
Availability: InStock
Rating: 4.5 (165 reviews)

Product Details

Place of Origin: china

Brand Name: vinncom

Model Number: VN-TAP-019096-ON6-160

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: USD 7~12

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            6dB N Female Tapper, Precise Signal Distribution N Female Tapper


Part Number:	VN-TAP-019096-ON6-160	Operating Frequency ( MHz ):	138-300/300-960
Impedance ( Ohm ):	50	VSWR:	≤1.25
IM3 (dBc @ 2×43dBm):	-160	Coupling Tolerance(dB):	6.6±0.8
Coupling Loss (dB):	≤1.9

Part Number:	VN-TAP-019096-ON6-160
Operating Frequency ( MHz ):	138-300/300-960
Impedance ( Ohm ):	50
VSWR:	≤1.25
IM3 (dBc @ 2×43dBm):	-160
Coupling Tolerance(dB):	6.6±0.8
Coupling Loss (dB):	≤1.9

Description

6dB 138-960MHz N Female Tapper

138-960MHz N Female Tapper

Good VSWR at all ports
Good PIM up to -160@43dBm*2
Less Coupling loss

Part Number		VN-TAP-019096-ON6-160
Operating Frequency ( MHz )		138-300/300-960
Tapper coupling(dB)		6
Coupling loss (dB)		≤1.9
VSWR		1.25
Coupling Tolerance(dB)	138-300MHz	6.6±0.8
	300-960MHz	5.5±0.8
Impedance ( Ohm )		50
IM3 (dBc @ 2×43dBm)		- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP65
Operating Temperature ( ℃ )		-35~75ºC
Interface		N Female
Dimension (mm)(L×W× H, excl connector)		1302525
ROHS Compliance		Yes
Remark		Install Bracket Include

RF Tapper is a device which similar to directional coupler,it is used to split an input signal into two parts for signal tapping out and main signal transmission,RF Tappers have no isolation port ,so this cause RF tapper has no directivity.N Female Tapper,138-300/300-960,6dB Low PIM,Low insertion loss,Low VSWR.
