7dB 138-960MHz N Female Tapper

Hot Products

Test Cable And Jumper

sales@vinncom.com

+8617755151077

Contact Now

7dB 138-960MHz N Female Tapper

MOQ:	10
Price:	USD 7~12
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

vinncom

Model Number

VN-TAP-019096-ON7-160

Part Number:

VN-TAP-019096-ON7-160

Operating Frequency ( MHz ):

138-300/300-960

Impedance ( Ohm ):

VSWR:

≤1.25

IM3 (dBc @ 2×43dBm):

Coupling Tolerance(dB):

7.8±0.6

Coupling Loss (dB):

Highlight:

7dB N Female Tapper

138-960MHz N Female Tapper

Product Description

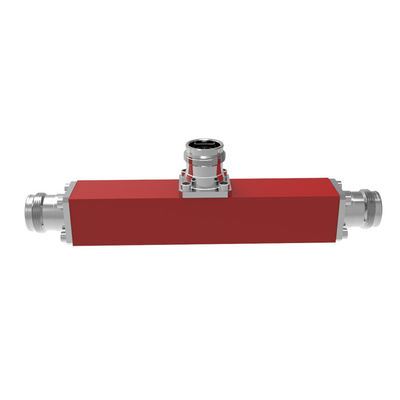

138-960MHz N Female Tapper

Low insertion loss
Low VSWR
Low PIM

Part Number		VN-TAP-019096-ON7-160
Operating Frequency ( MHz )		138-300/300-960
Tapper coupling(dB)		7
Coupling loss (dB)		≤1.5
VSWR		1.25
Coupling Tolerance(dB)	138-300MHz	7.8±0.6
	300-960MHz	6.8±0.6
Impedance ( Ohm )		50
IM3 (dBc @ 2×43dBm)		- 160
Power Rating		300 W
Application		Indoor & Outdoor
Degree of Protection		IP65
Operating Temperature ( ℃ )		-35~75ºC
Interface		N Female
Dimension (mm)(L×W× H, excl connector)		1302525
ROHS Compliance		Yes
Remark		Install Bracket Include

RF Tapper is a device which similar to directional coupler,it is used to split an input signal into two parts for signal tapping out and main signal transmission,RF Tappers have no isolation port ,so this cause RF tapper has no directivity.N Female Tapper,138-300/300-960,7dB Low PIM,Low insertion loss,Low VSWR.
