DC-6GHz 10W Dummy Load /Termination Load N Female for DAS and BTS
  • name
  • name
  • name

DC-6GHz 10W Dummy Load /Termination Load N Female for DAS and BTS

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-6G-10W-ONf-R
Connector:
N Female
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Highlight:

N Female Dummy Load for DAS

,

10W Dummy Load for BTS

,

DC-6GHz Dummy Load

Product Description

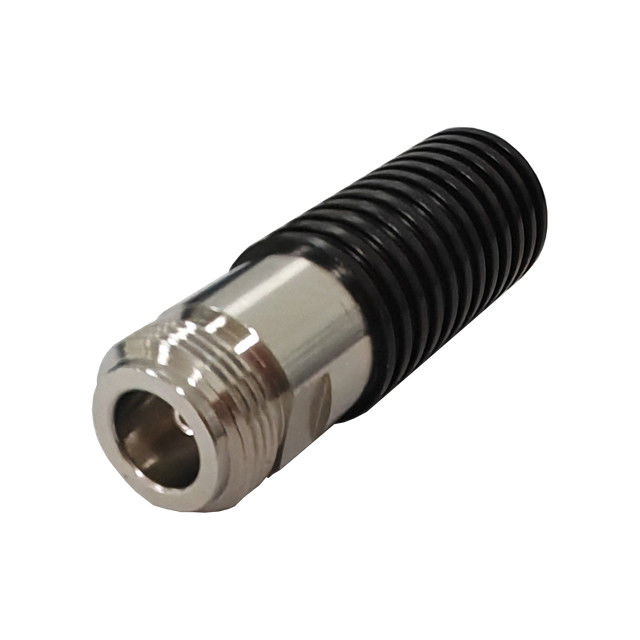

DC-6GHz 10W Dummy Load /Termination Load



  • Better heating shrink
  • Wide band

  • Good VSWR

​

                                                                                                                                                  VN-LD-6G-10W-ONf-R.pdf

Part Number VN-LD-6G-10W-ONf-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 10
Dimension (mm)(L×W×H, excl connector) Φ18X54.1
Packing Dimensions(mm)(L×W×H) 65X65X85
Packing Carton Size(mm)(L×W×H) 350X350X185
ROHS Compliance Yes
Revision R1







                                                                                                                                                       DC-6GHz 10W Dummy Load /Termination Load N Female for DAS and BTS 0DC-6GHz 10W Dummy Load /Termination Load N Female for DAS and BTS 1

Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
