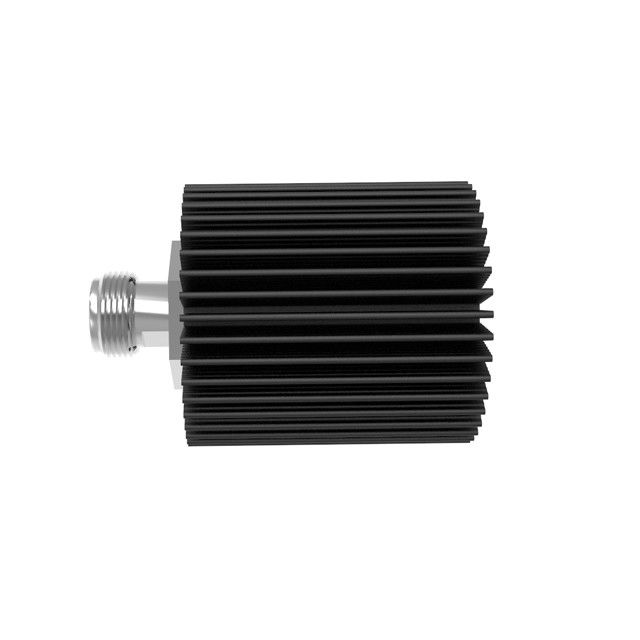

DC-6GHz 20W Dummy Load / Termination Load N Female
  • name
  • name
  • name
  • name
  • name
  • name

DC-6GHz 20W Dummy Load / Termination Load N Female

MOQ: 5 PCS
Price: negotiation
Payment Method: D/A, D/P, T/T, L/C
Supply Capacity: 500pcs per day
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Vinncom
Certification
ISO9000 ROHS
Model Number
VN-LD-6G-20W-ONf-R
Connector:
N Female
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Highlight:

20W Dummy Load

,

High Frequency N Female Dummy Load

,

DC-6GHz Dummy Load

Product Description

DC-6GHz 20W Dummy Load /Termination Load



  • Satisfying ROHS Compliance
  • Wide band

  • Good VSWR

​

                                                                                                                                                     VN-LD-6G-20W-ONf-R.pdf

Part Number VN-LD-6G-20W-ONf-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power (Watt, max) 20
Dimension (mm)(L×W×H, excl connector) Φ47X50
Packing Dimensions(mm)(L×W×H) 65X65X85
Packing Carton Size(mm)(L×W×H) 350X350X185
ROHS Compliance Yes
Revision R1







                                                                                                                                              DC-6GHz 20W Dummy Load / Termination Load N Female 0DC-6GHz 20W Dummy Load / Termination Load N Female 1

                                                                                                                                            DC-6GHz 20W Dummy Load / Termination Load N Female 2DC-6GHz 20W Dummy Load / Termination Load N Female 3

Tags:

metal sma dummy load,

cantenna dummy load,

amplifier dummy load
