DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male
DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male
DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male
DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male
DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male
DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male
DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male

DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-6G-50W-OPm-R

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

50W Dummy Load

,

DC-6GHz Dummy Load

,

4.3-10 Male Dummy Load

Connector:
4.3-10 Male
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Connector:
4.3-10 Male
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Description

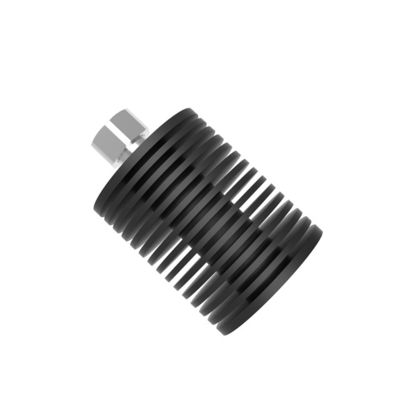

DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male

DC-6GHz 50W Dummy Load /Termination Load



  • Better heating shrink
  • Satisfying ROHS Compliance

  • Good VSWR

​

​                                                                                                                                                          VN-LD-6G-50W-OPm-R.pdf

Part Number VN-LD-6G-50W-OPm-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface 4.3-10 Male
Handling Power (Watt, max) 50
Dimension (mm)(L×W×H, excl connector) Φ60X75
Packing Dimensions(mm)(L×W×H) 65X65X105
Packing Carton Size(mm)(L×W×H) 350X350X225
ROHS Compliance Yes
Revision R1







                                                                                                                                             DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male 0            DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male 1

                                                                                                                                     DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male 2DC-6GHz 50W Dummy Load /Termination Load 4.3-10 Male 3
