HeFei Vinncom Electronic Technology Co.,Ltd.
Hot Products
Home /

Hot Products

DC-6GHz 100W Dummy Load / Termination Load N Male
DC-6GHz 100W Dummy Load / Termination Load N Male
DC-6GHz 100W Dummy Load / Termination Load N Male
DC-6GHz 100W Dummy Load / Termination Load N Male
DC-6GHz 100W Dummy Load / Termination Load N Male
DC-6GHz 100W Dummy Load / Termination Load N Male
DC-6GHz 100W Dummy Load / Termination Load N Male

DC-6GHz 100W Dummy Load / Termination Load N Male

Product Details

Place of Origin: CHINA

Brand Name: Vinncom

Certification: ISO9000 ROHS

Model Number: VN-LD-6G-100W-ONm-R

Payment & Shipping Terms

Minimum Order Quantity: 5 PCS

Price: negotiation

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 500pcs per day

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:

N Male Dummy Load

,

100W Dummy Load

,

DC-6GHz Dummy Load

Connector:
N Male
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Connector:
N Male
Coloer:
Black
Application:
DAS BTS
Frequency:
DC-6GHz
Description

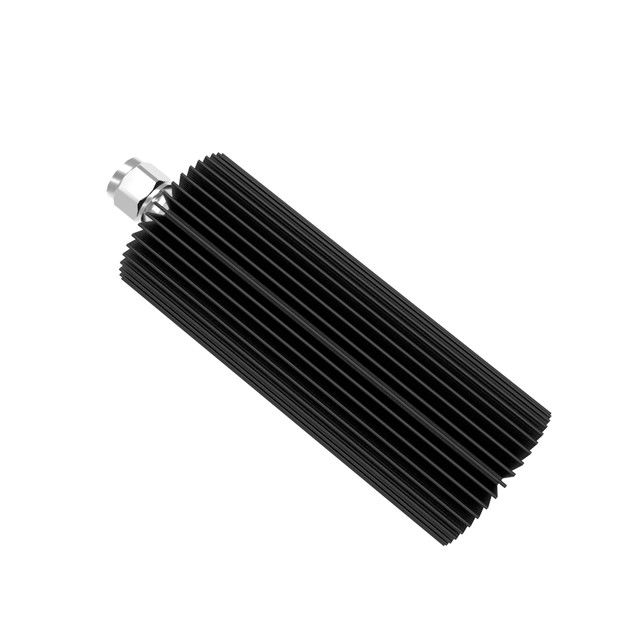

DC-6GHz 100W Dummy Load / Termination Load N Male

DC-6GHz 100W Dummy Load /Termination Load



  • Wide band
  • Satisfying ROHS Compliance

  • Good VSWR

​

​                                                                                                                                                          VN-LD-6G-100W-ONm-R.pdf

Part Number VN-LD-6G-100W-ONm-R
Operating Frequency ( MHz ) DC-6000
Impedance ( Ohm ) 50
VSWR ≤1.25
Application Indoor
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Male
Handling Power (Watt, max) 100
Dimension (mm)(L×W×H, excl connector) Φ60X150
Packing Dimensions(mm)(L×W×H) 65X65X210
Packing Carton Size(mm)(L×W×H) 350X350X220
ROHS Compliance Yes
Revision R1







                                                                                                                                              DC-6GHz 100W Dummy Load / Termination Load N Male 0              DC-6GHz 100W Dummy Load / Termination Load N Male 1

                                                                                                                                                     DC-6GHz 100W Dummy Load / Termination Load N Male 2      DC-6GHz 100W Dummy Load / Termination Load N Male 3
