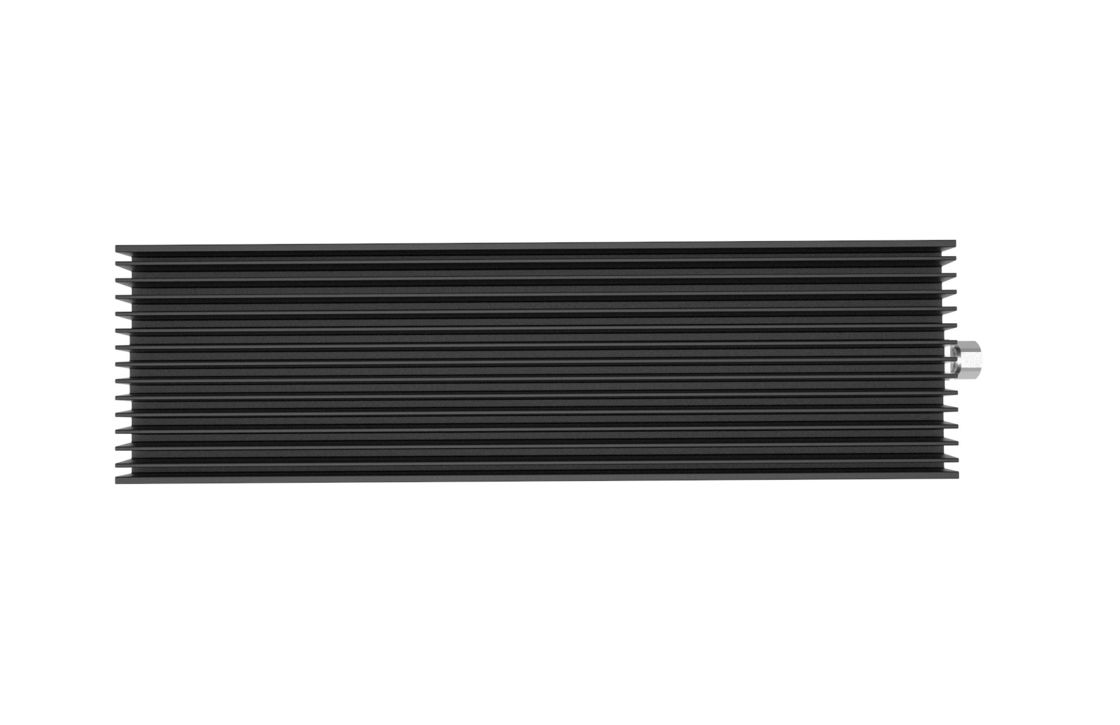

DC-4GHz 500W Dummy Load / Termination Load 4.3-10 Male

Name: DC-4GHz 500W Dummy Load / Termination Load 4.3-10 Male
Brand: HeFei Vinncom Electronic Technology Co.,Ltd.
SKU: VN-LD-4G-500W-OPm-S
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Vinncom

Certification: RoHS/ISO9000

Model Number: VN-LD-4G-500W-OPm-S

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: negotiation

Packaging Details: foam+box

Delivery Time: 2-4weeks

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 50pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            500W Dummy Load, DC-4GHz Dummy Load, 4.3-10 Male Dummy Load


Operating Frequency:	DC-4 GHZ	Impedance ( Ohm ):	50
Application:	Indoor & Outdoor	Handling Power (Watt, Max):	500W
Interface:	4.3-10 Male	VSWR:	1.3
Dimension (mm):	142X500X70

Operating Frequency:	DC-4 GHZ
Impedance ( Ohm ):	50
Application:	Indoor & Outdoor
Handling Power (Watt, Max):	500W
Interface:	4.3-10 Male
VSWR:	1.3
Dimension (mm):	142X500X70

Description

DC-4GHz 500W Dummy Load / Termination Load 4.3-10 Male

DC-4GHz 500W Dummy Load /Termination Load 4.3-10 Male

Good VSWR
Wide band
Satisfying ROHS Compliance

VN-LD-4G-500W-OPm-S.pdf

Part Number	VN-LD-4G-500W-OPm-S
Operating Frequency ( MHz )	DC-4000
Impedance ( Ohm )	50
VSWR	≤1.30
Application	Indoor
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	4.3-10 Male
Handling Power (Watt, max)	500
Dimension (mm)(L×W×H, excl connector)	142X500X70
ROHS Compliance	Yes
